Optical parameters
|
|
Projector technology
|
Texas Instruments Ti DLP technology
|
|
Display chip
|
Ti 0.23 inch DMD
|
Type of light source
|
Osram RGB-LED light
|
|
Projection brightness
|
180ANSI (International standard)
|
|
Physical resolution
|
960X540P
|
Image quality uniformity
|
>90%
|
|
Contrast FOFO
|
3000:1
|
3D technology
|
Support 3D function DLP-LINK shutter 3D glasses
|
|
Projection parameter
|
|
Throw ratio
|
1.07:1
|
|
Projection frame
|
42“@1 meter
|
Projection size
calculation method
|
Projection ratio(1.07)*projection size (100 inches)*16:9
screen length (0.0254*0.8716)
|
|
Screen width ratio
|
16:9
|
|
Keystone correction
|
Automatic trapezoidal correction ±40°, support manual side casting function
|
Projection method
|
Support front projection, rear projection, and hanging projection
|
|
Focusing method
|

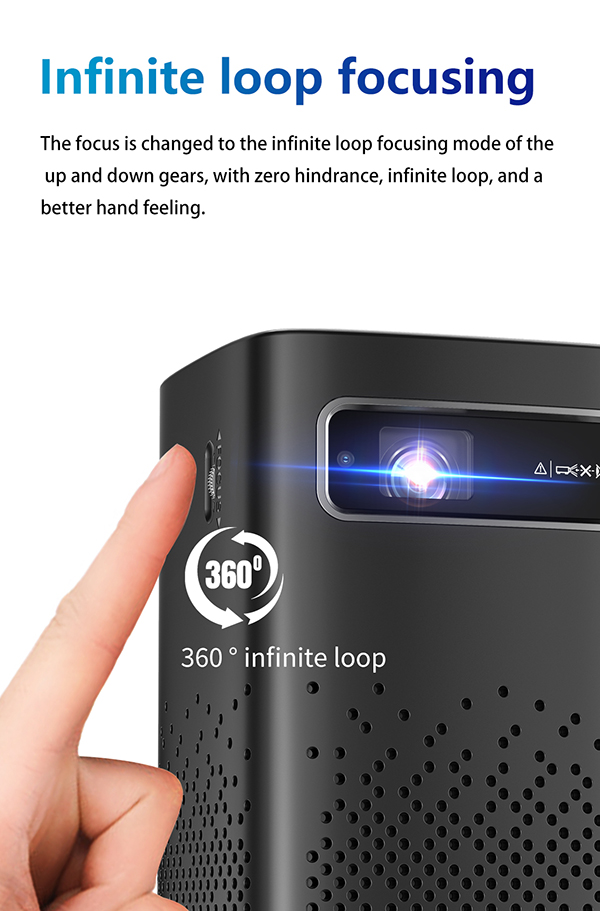

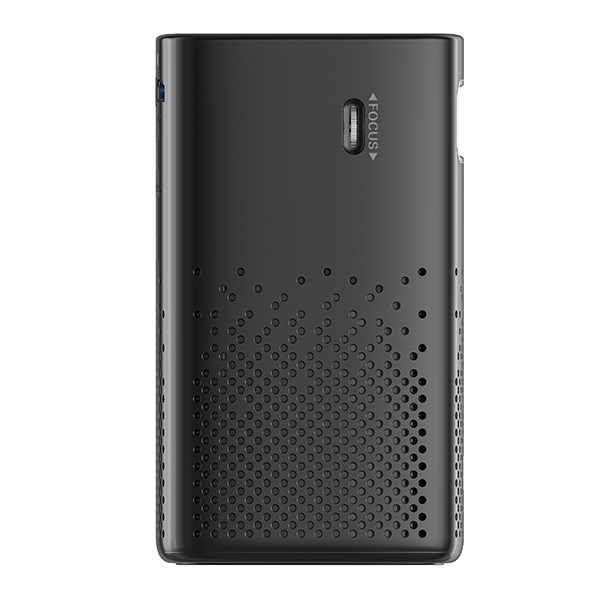

Manual Focus
|
|
Built-in speaker
|
5W*2 (Super bass surround sound)
|
|
Fuselage material
|
Metal+Laptop touch Key+Body lens adopts closed optical design, to ensure that the lens will not be scratched for 10 years
|
|

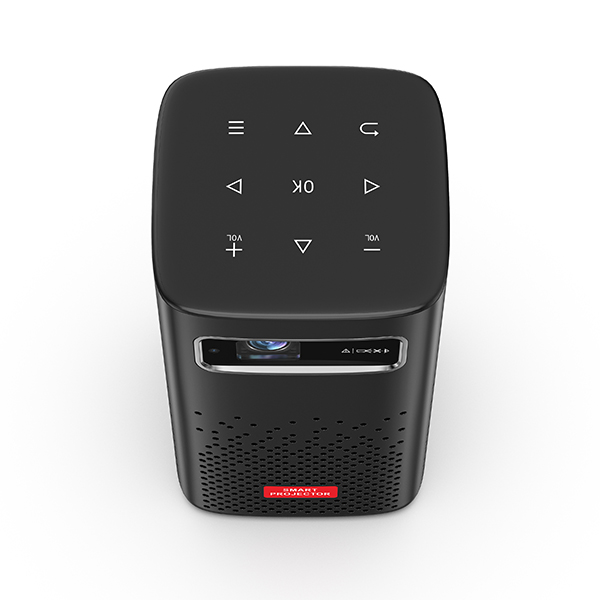

Touch the fuselage
|

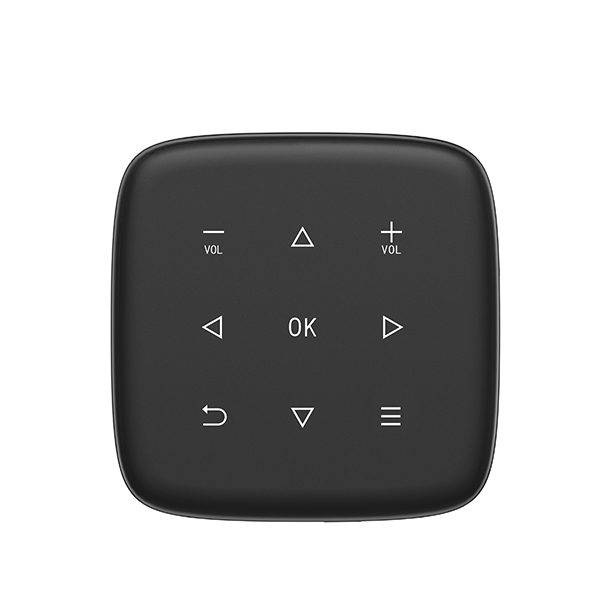

Support for 9-point touch navigation control
|
|
System parameters
|
|
CPU
|
MTK Decode 4K H265/AVS2 4K*2K/30HZ
|
Clock Speed
|
64-bit CPU: Contex A53 4-core GPU: Mali-G31
|
|
Cache
|
2GB DDR3
|
|
ROM
|
32GB eMMC
|
|
Operating System
|
AOSP Android 9.0
|
|
BT
|

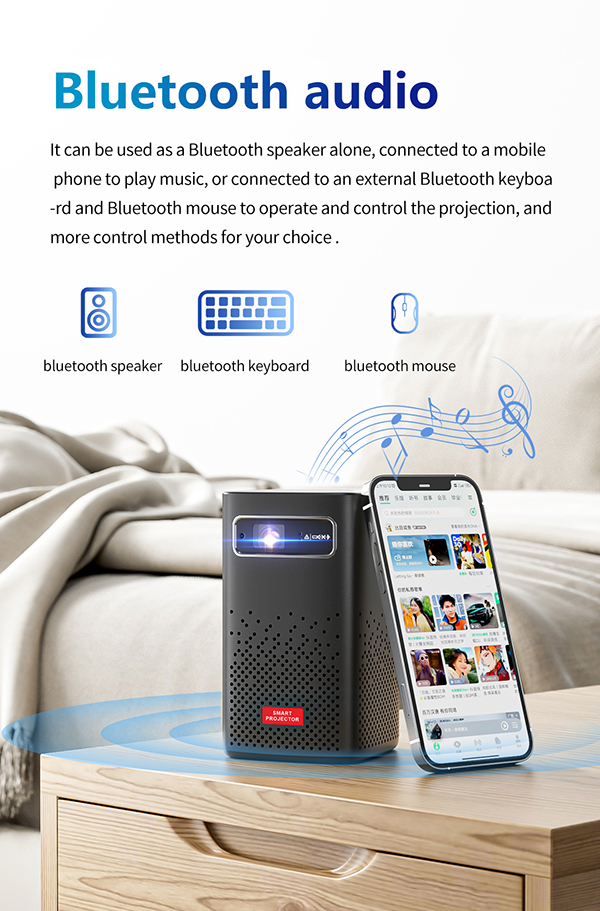

BT5 .0 (can be connected to an external BT mouse, BT
speaker, mouse, gamepad)
|
|
WiFi
|
2.4G+5G dual-band
|
|
Remote Control
|
Standard BT remote control, support for external USB 2.4G wireless remote control, BT remote control mouse
|
|
Input support
|
U disk, mobile hard disk, mouse, keyboard access, computer, set-top box
|
|
Wireless same screen
|
Support WiFi LAN on the same screen + outdoor no network hotspot on the same screen
|
|

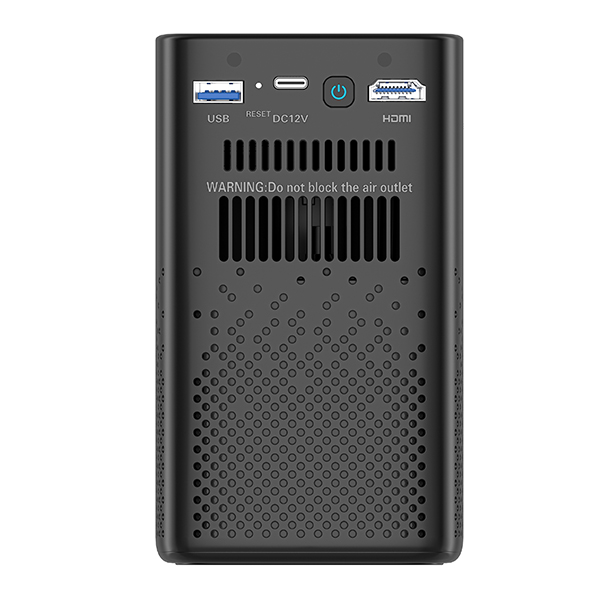

Interface parameters
|
|
Extended Memory
|
Support U disk and SSD solid state drive
|
|
Type-C
|
Type-C port charge , support with Type-C protocol mobile power supply and power adapter supply
|
|
USB input
|
USB HOST 2.0* 1
|
|
HD input
|
Support HD 2.0 input
|
|
Electrical Specifications
|
|
Total Power Consumption
|
10W
|
|
Built-in battery
|
Built-in 8000mAh lithium battery 29.6Wh
|
|
Projector size
|

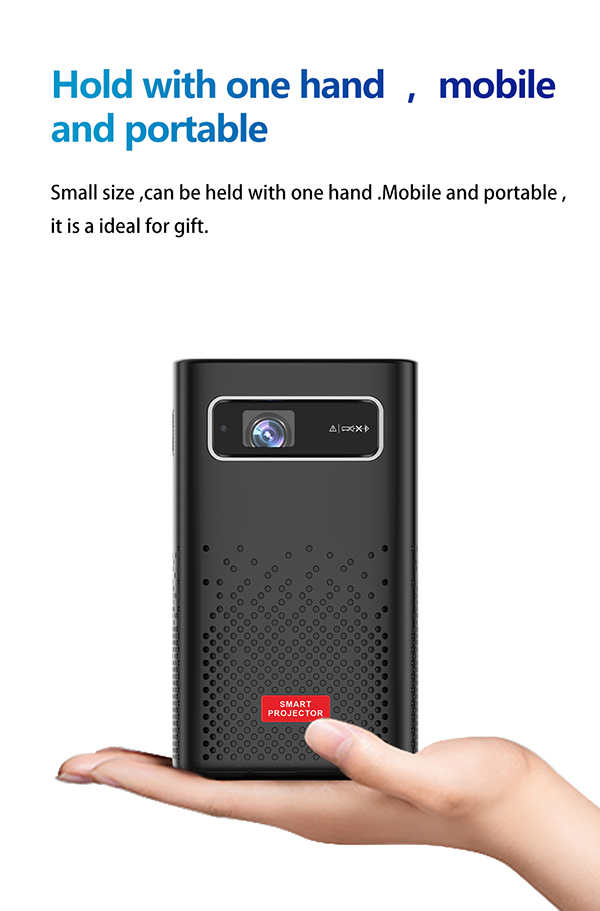

8.5x8.5x14.5cm
|
|
Packing size
|
25x20x10cm
|
|
Net weight
|
0.63kg
|
|
Packing weight
|
1.4kg
|
|
Carton weight(10sets/box)
|
15.5kg
|
|
carton size
|
55x27x45cm
|
|
Power input
|
Power Adapter 12V/2A TYPE-C in
|
|
Battery life
|
130 minutes in highlight mode, 170 minutes in standard mode, 190 minutes in power saving mode
|
Charging time
|
Fully charged in about 3 hours (can be used while charging)
|
|
Packing list
|
|
C900 , Remote control, Power adapter,Mini Tripod, Portable storage bag , Product instruction card
|
