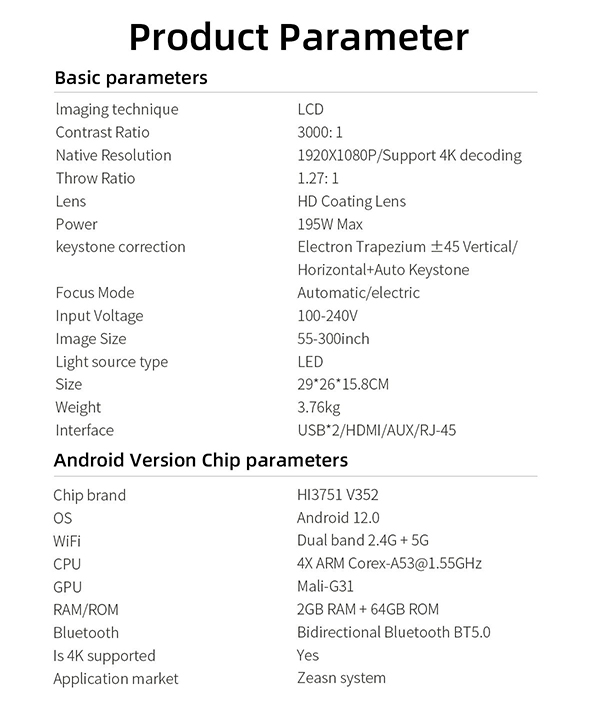

Optical parameters
|
|
Projector technology
|
LCD technology
|
|
Display chip
|

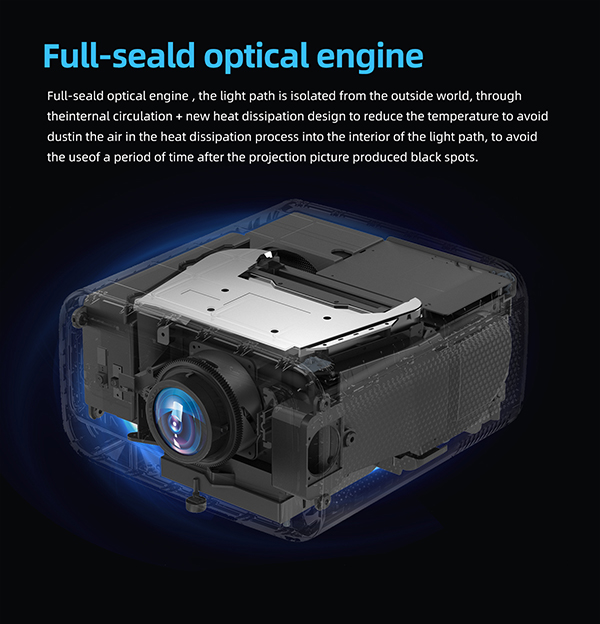

5 inch LCD(Fully Sealed Optical Engine Design)
|
Type of light source
|
195W White LED
|
|
Projection brightness
|
3000 CVIA Lumens
|
|
Physical resolution
|
1920x1080P, Support 4K
|
Image quality uniformity
|
>70%
|
|
Contrast FOFO
|
10000:1
|
|
Projection parameter
|
|

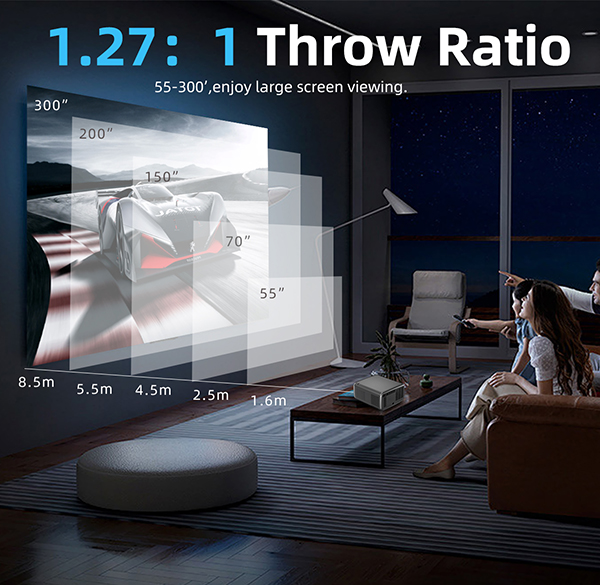

Throw ratio
|
1.27:1
|
|
Projection frame
|
38“@1 meter
|
Projection size
calculation method
|
About 2.8m, 100 inches
|
|
Screen width ratio
|
16:9
|
|
Keystone correction
|
Automatic trapezoidal correction ±30°, support manual side casting function
|
Projection method
|
Support front projection, rear projection, and hanging projection
|
|
Focusing method
|
Auto focus Auto Keystone
|
|

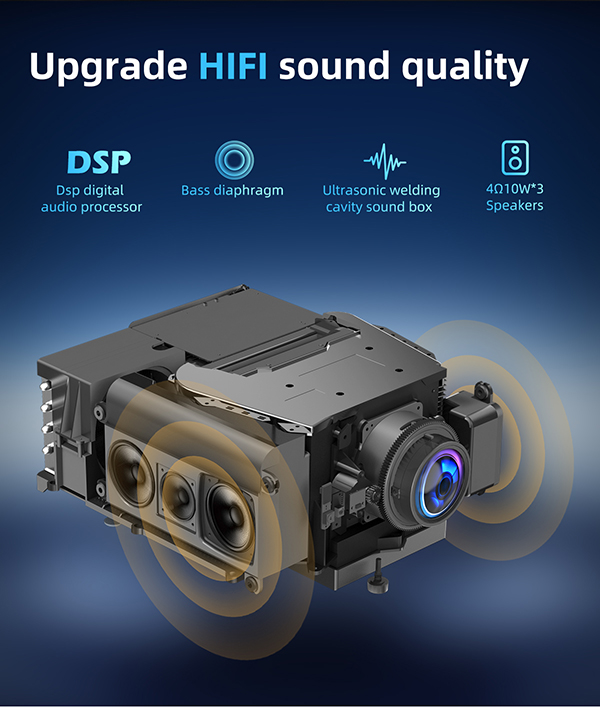

Built-in speaker
|
10W*2(Subwoofer Surround Sound Speaker)
|
|
System parameters
|
|
CPU
|
HI3751 V352
|
Clock Speed
|
64-bit CPU: Contex A55 4-core GPU: Mali-G31
|
|
ROM
|
2GB DDR3
|
|
RAM
|
64GB eMMC
|
|
Operating System
|
AOSP Android 12.0
|
|
BT
|
BT5 .0 (can be connected to an external BT mouse, BT speaker, mouse, gamepad)
|
|
WiFi
|
2.4G+5G dual-band WiFi 6
|
|
Remote Control
|
Standard infrared remote control
|
|
Input support
|
U disk, mobile hard disk, mouse, keyboard access, computer, set-top box
|
|
Wireless same screen
|
Support WiFi LAN on the same screen + outdoor no network hotspot on the same screen
|
|

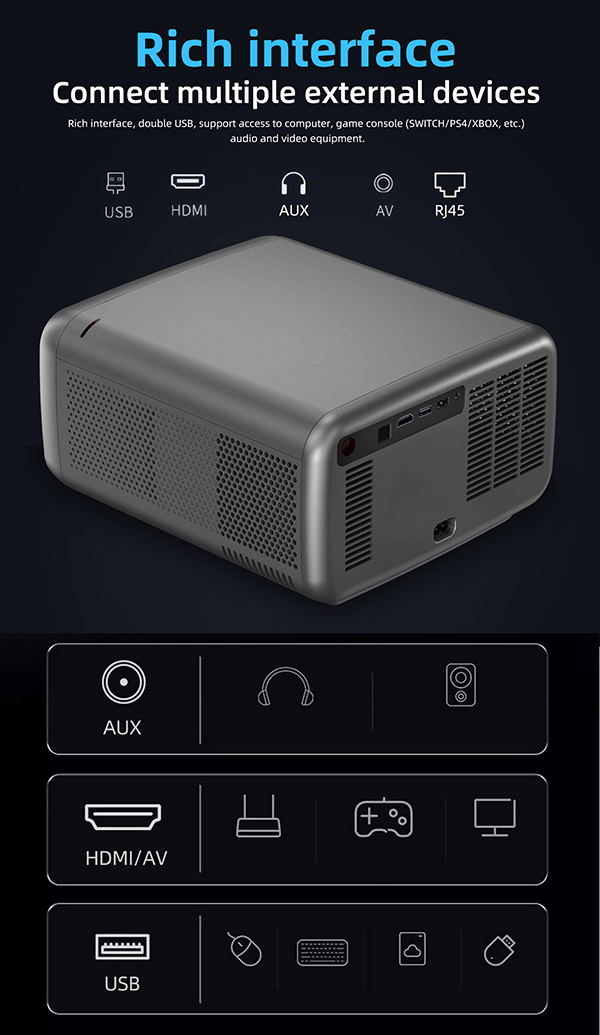

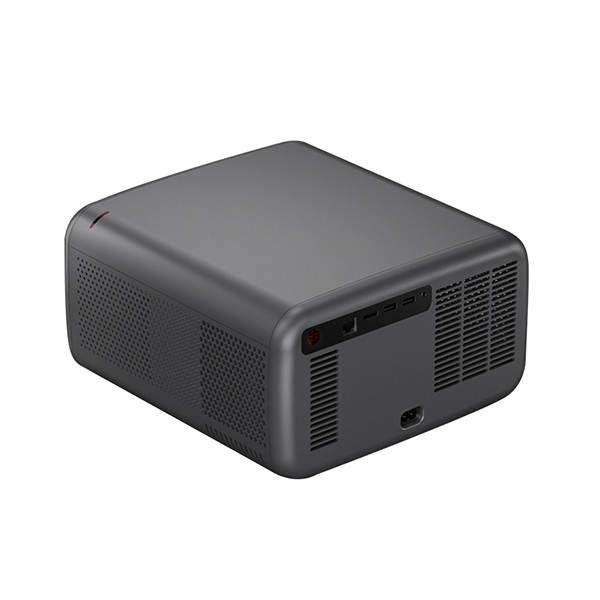

Interface parameters
|
|
Extended Memory
|
Support U disk and SSD solid state drive
|
|
Headphone Output
|
Audio output, 3.5mm connector (headphones or speakers can be
connected)
|
|
USB input
|
USB 2.0* 1. USB 3.0*1
|
|
Lan Port
|
RJ45*1
|
|
HD input
|
Support HD 2.0 input
|
|
Electrical Specifications
|
|
Total Power Consumption
|
195W
|
|
Projector size
|
29x26x16cm
|
|
Packing size
|
38x25x35cm
|
|
Net weight
|
3.76kg
|
|
Packing weight
|
5kg/Volume weight 6.8kg
|
|
Carton weight(4sets/box)
|
21kg
|
|
carton size
|
74x42x55cm
|
|
Packing list
|
|
Projector, Remote control, Power plug , User manual, HD cable
|
