Product description
|
Model:
|
D047E
|
|
Product description
|
DLP Mini Pocket projector
|
|
Projection Specification
|
|
Projection Technology
|
DLP(0.23"DMD)
|
|
Display Chip
|
RGB LED OSRAM Q6
|
|
Light Life
|
Up to 30,000 hours
|
|
Light Luminance
|
100 ANSI Lumens
|
|
Light Type
|
LED
|
|
Standard Resolution
|
WVGA 854*480P, Support 4K
|
|
Projection Area
|
30-150 inch
|
|
Contrast
|
3000:1
|
|
Projection Ratio
|
1.19:1
|
|
Distortion
|
<1.0%
|
|
Luminance Uniformity
|
>85%
|
|
Projection Distance
|
1-5m
|
|
Aspect Ratio
|
4:3/16:9/16:10
|
|
Focus mode
|
Manual focus
|
|
Keystone Correction
|
Manual, Vertical: ±40 degree
|
|
Projector Character
|
Interaction
|
|
Projection Mode
|
Front Projection
|
|
System Parameters
|
|
|
|
|
Screen Mirror
|
Eshare/Airplay/MiraCast
|
|

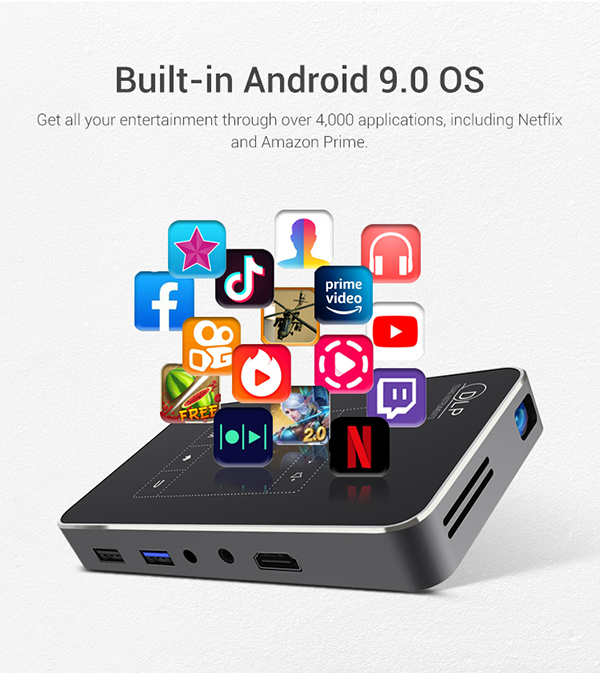

OS
|
Android 9.0
|
|
CPU
|
AML S905X
|
|
Basic Frequency
|
Quad-core 4XARM Cortex-A53
|
|
GPU
|
Penta -core ARM Mali 450 GPU up to 750MHz+ (DVFS)
|
|
Buffer Memory
|
1G DDR3
|
|
Memory
|
8GB
|
|
WIFI
|
2.4G/5G Wifi
|
|
Bluetooth
|
BT 4.0
|
|
Basic parameters
|
|
|
|
|
Built-in Battery
|
4000MA
|
|
Usage time
|
work for about 2 hours
|
|
Video Support
|
MPEG-1, MPEG-2, MPEG-4 real-time video decoder, H.263, H.264, H.265, VC-1, RV, VP6/ VP8, Sorenson Spark, MVC
|
|
Audio Support
|
MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV
|
|
Image Support
|
Supports variety of image formats browsing (jpg, png, bmp etc.)
|
|
Extended Storage
|
Support TF Card and Hard Disk
|
|
Remote Control
|
Support(IR) Infrared and 2.4G wireless control
|
|
Built-in speaker
|
1*1W
|
|
Light machine Consumption
|
3W
|
|
Whole Power Consumption
|
5W
|
|
Power Performance
|
AC100-240V,50/60Hz DC 5V 3A
|
|

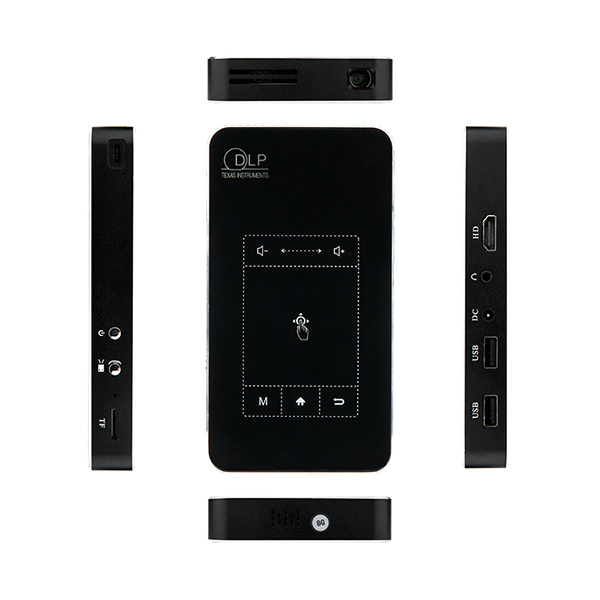

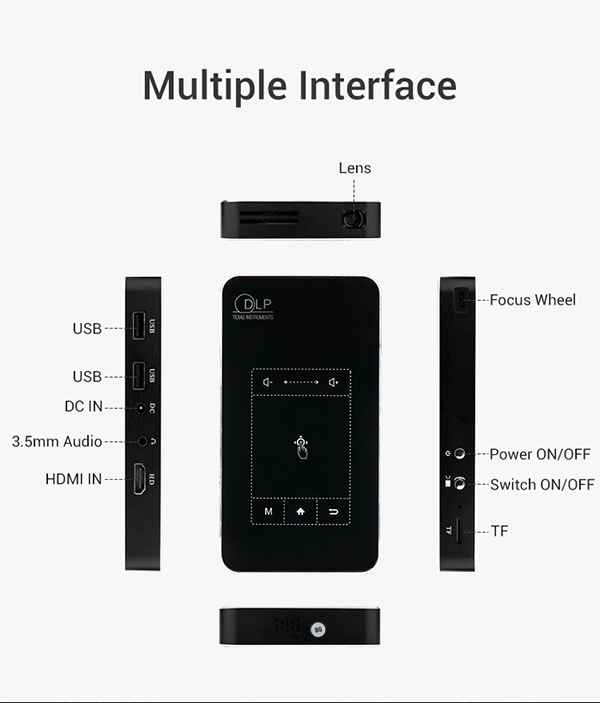

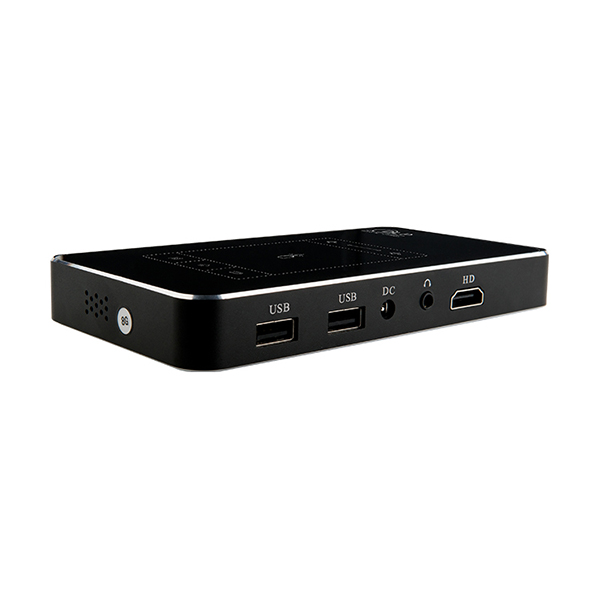

Interface
|
1*TF Card: Max 32G
|
|
1*HD: HD Input1.4
|
|
2*USB: USB 2.0 Support USB hard disk data read
|
|
1*Earphone: Audio output, 3.5mm joint (can connect with earphone or speaker box)
|
|
1* DC input: DC 5V 3A
|
|
Package
|
|
|
|
|
Colour
|
White/Black
|
|
Dimension
|
145*78*18mm
|
|
Net weight
|
208g
|
|
Gift Box weight
|
675g
|
|
Gift Box Size
|
189x156x65mm
|
|
Carton box size
|
390*357*335mm
|
|
Carton box weight
|
11.87kg/10set
|

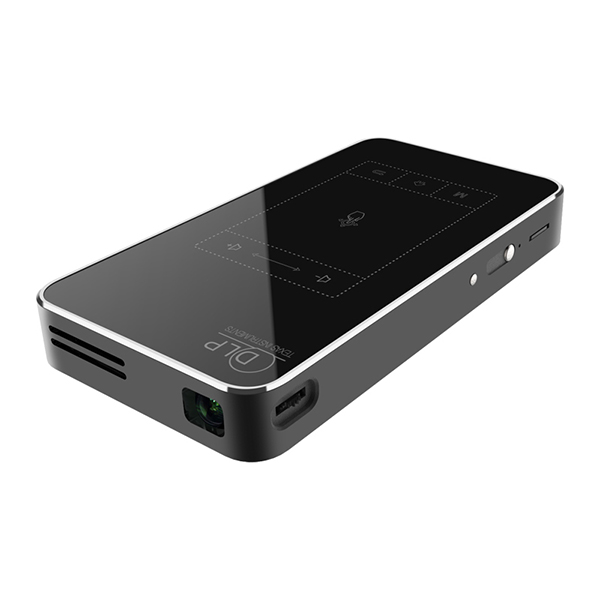

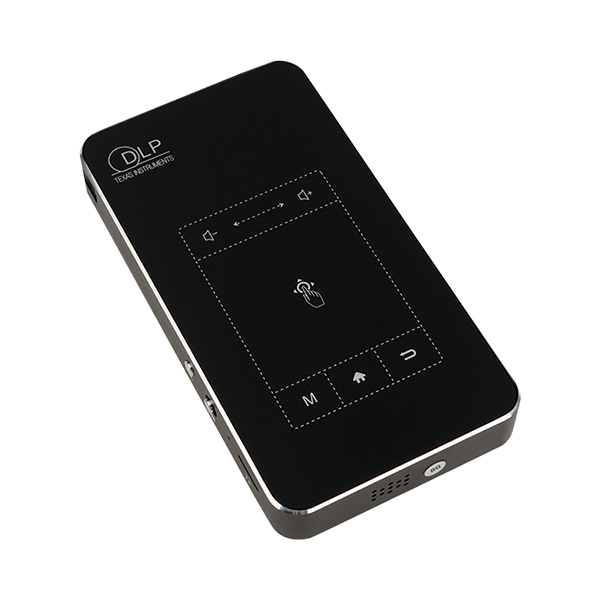

Photo show

|
