Optical parameters
|
|
Projector technology
|
Texas Instruments Ti DLP technology
|
|
Display chip
|
Ti 0.23 inch DMD (With off-axis 80% optical machine)
|
Type of light source
|

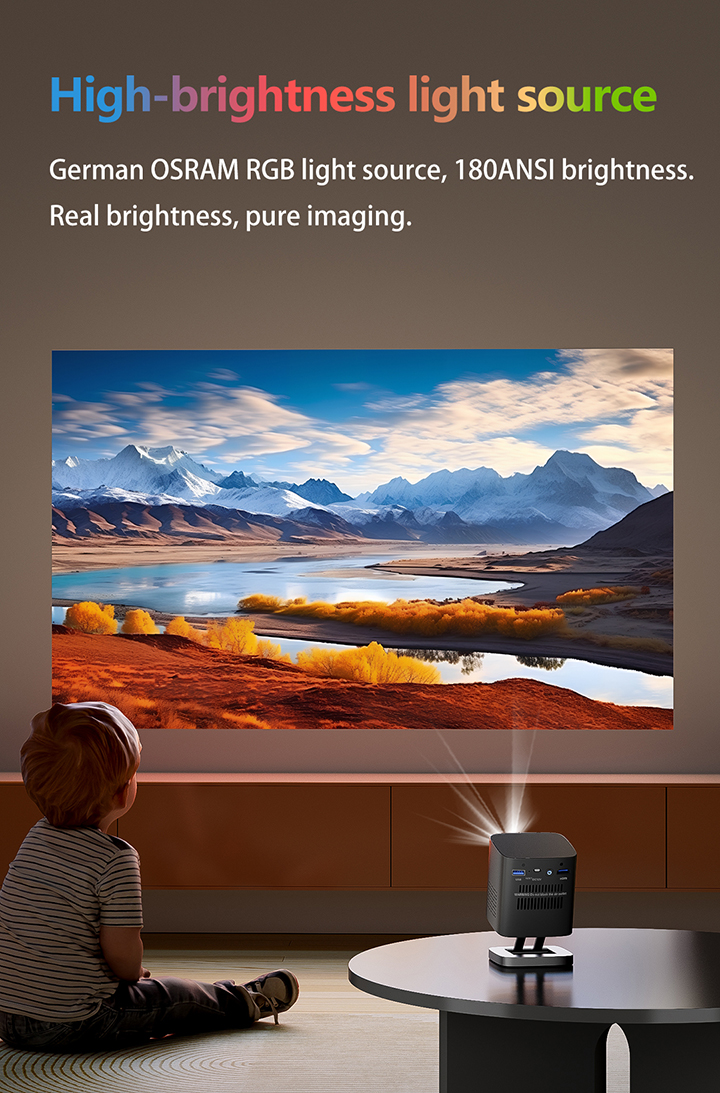

Osram RGB-LED light
|
|
Projection brightness
|
180ANSI (International standard)
|
|

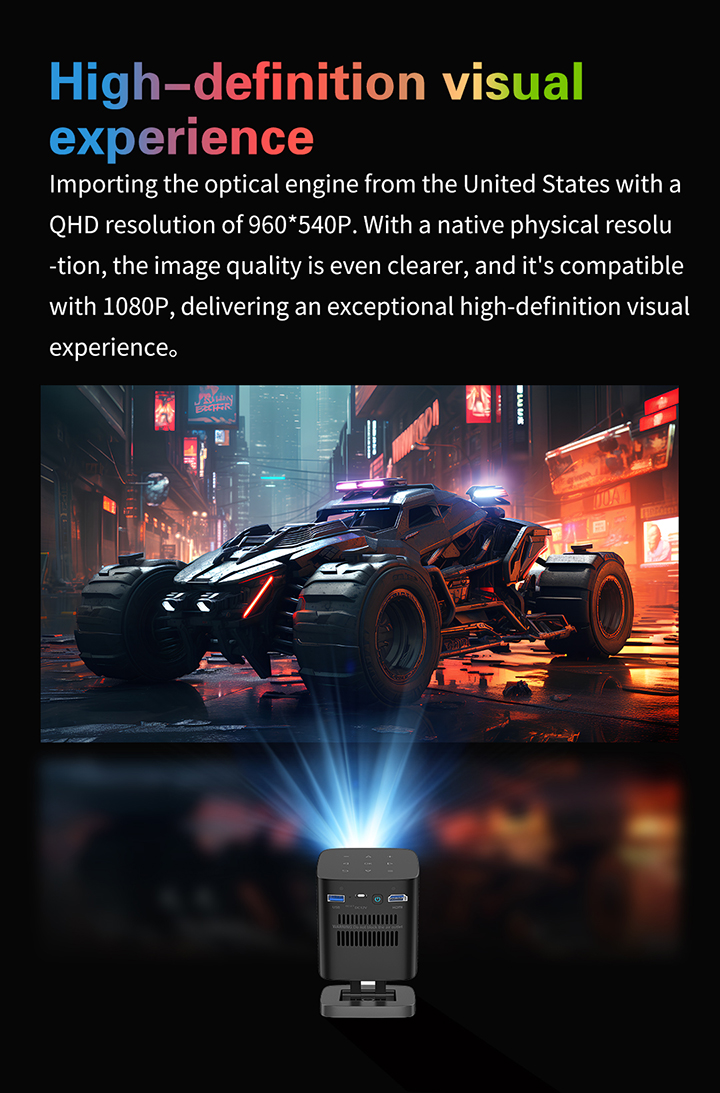

Physical resolution
|
960*540P, Support 4K
|
Image quality uniformity
|
>90%
|
|
Contrast FOFO
|
3000:1
|
|
3D technology
|
Support 3D function DLP-LINK shutter 3D glasses
|
|
Projection parameter
|
|
Throw ratio
|
1.07:1
|
|
Projection frame
|
42“@1 meter
|
Projection size
calculation method
|
Projection ratio (1.07) * projection size (100 inches)*16:9
screen length (0.0254*0.8716)
|
|
Screen width ratio
|
16:9
|
|
Keystone correction
|
Automatic up and down keystone correction ±40°, support
manual side projection function
|
Projection method
|
Support front projection, rear projection, and hanging projection
|
|
Focusing method
|
Manual focus
|
|

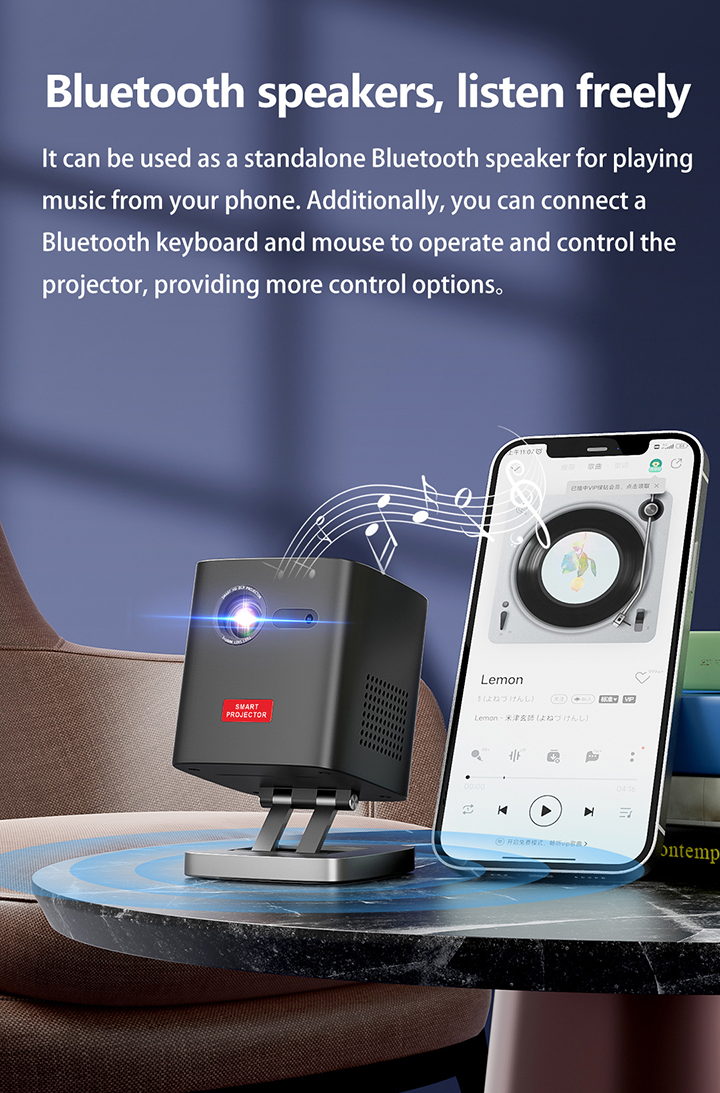

Built-in speaker
|
5W*2
|
|
Fuselage material
|

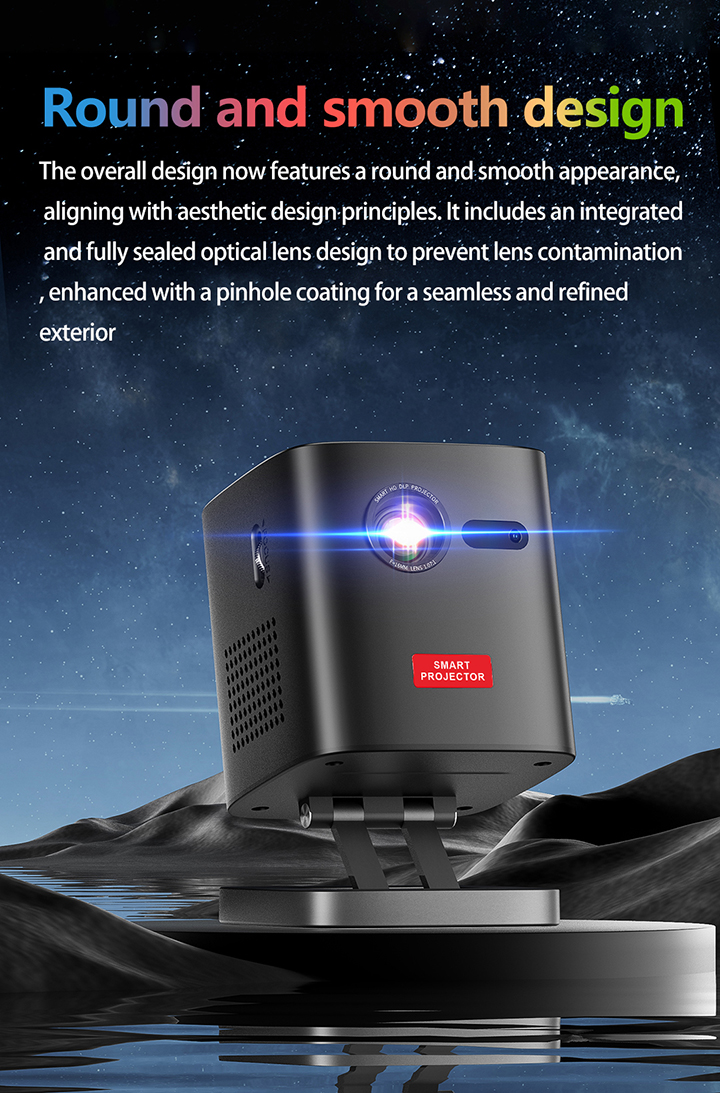

ABS+PC, the lens adopts airtight optical design, to ensure that the lens will not scratch for 10 years
|

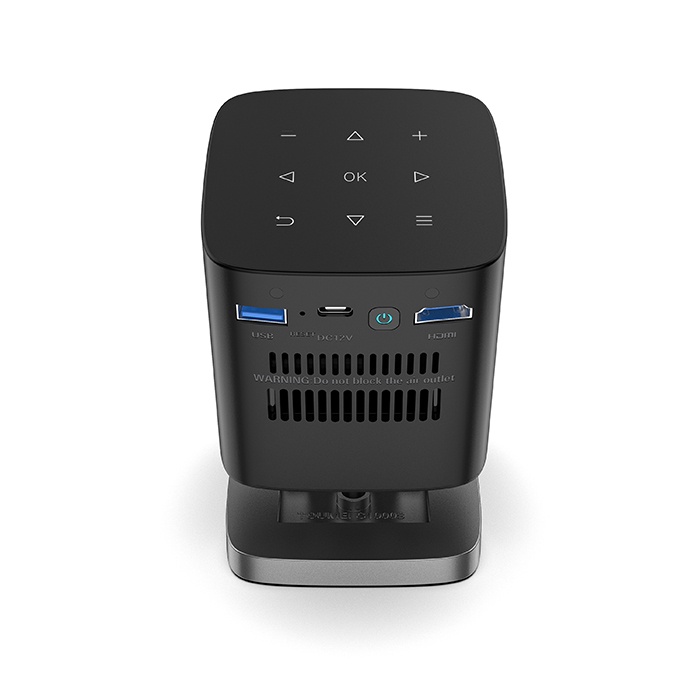

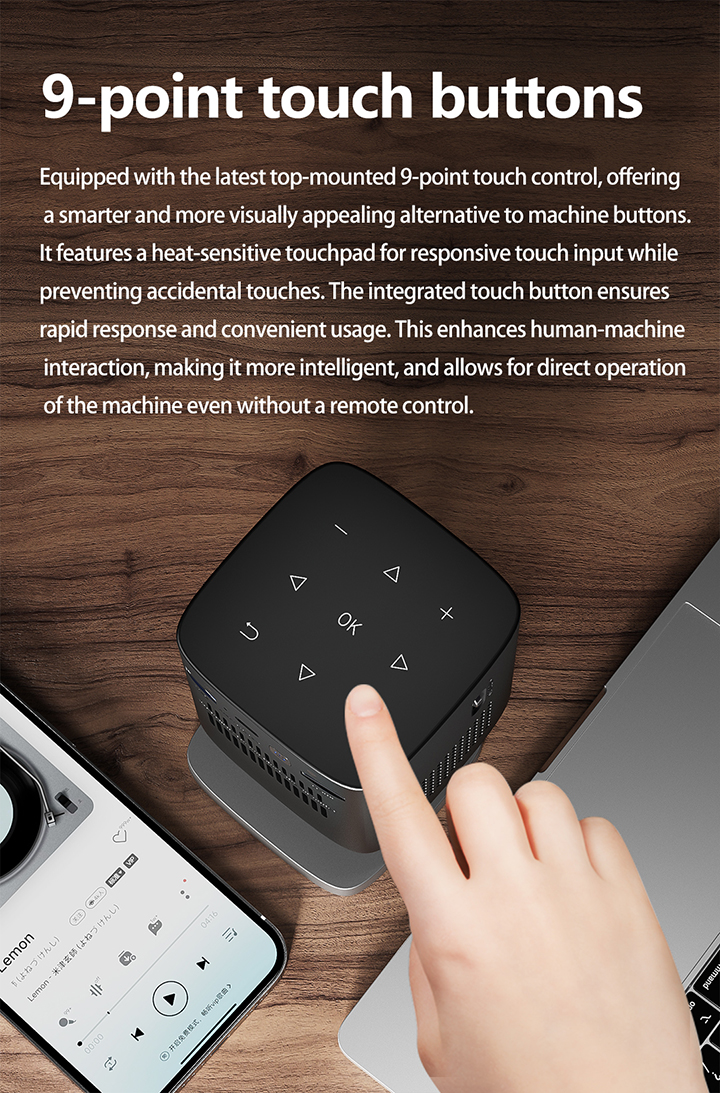

Touch the fuselage
|
Support for 9-point touch navigation control
|
|
System parameters
|
|
CPU
|
MTK Decode 4K H265/AVS2 4K*2K/30HZ
|
Clock Speed
|
64-bit CPU: Contex A53 4-core GPU: Mali-G31
|
|
Cache
|
2GB DDR3
|
|
ROM
|
32GB eMMC
|
|
Operating System
|
AOSP Android 9.0
|
|
BT
|
BT5 .0 (can be connected to an external BT mouse, BT speaker, mouse, gamepad)
|
|
WiFi
|
2.4G+5G dual-band
|
|
Remote Control
|
Standard infrared remote control, support for external USB
2.4G wireless remote control, BT remote control mouse
|
|
Input support
|
U disk, mobile hard disk, mouse, keyboard access, computer,
set-top box
|
|
Wireless same screen
|
Support WiFi LAN on the same screen + outdoor no network hotspot on the same screen
|

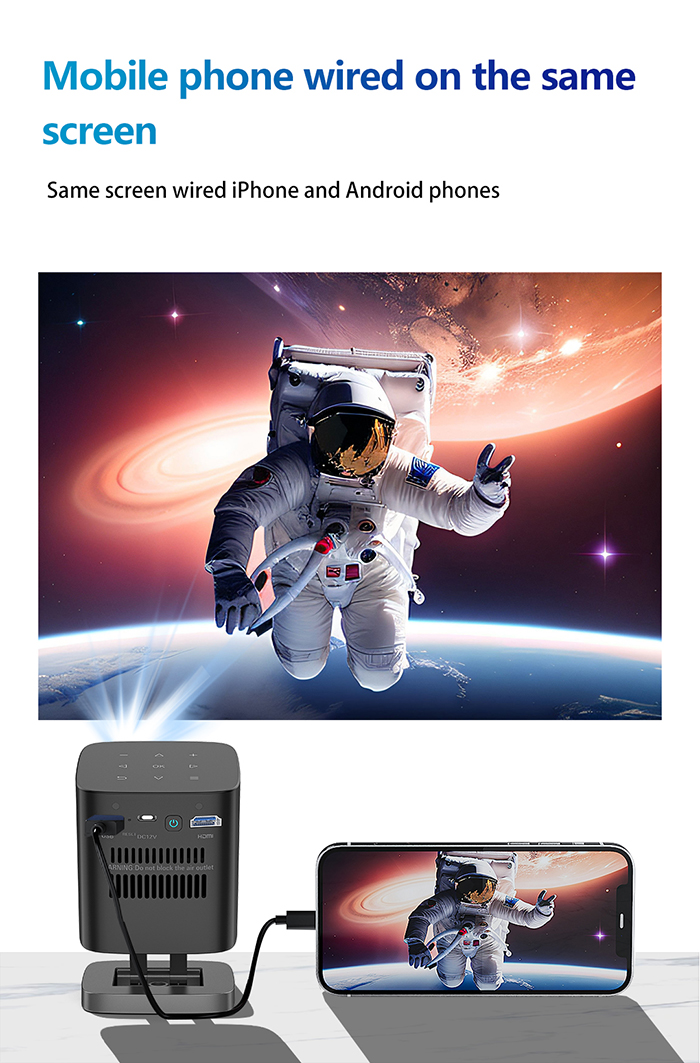

Wired same screen:
|
Support data cable(wired) same screen technology for IPhone and Android mobile phone
|
|

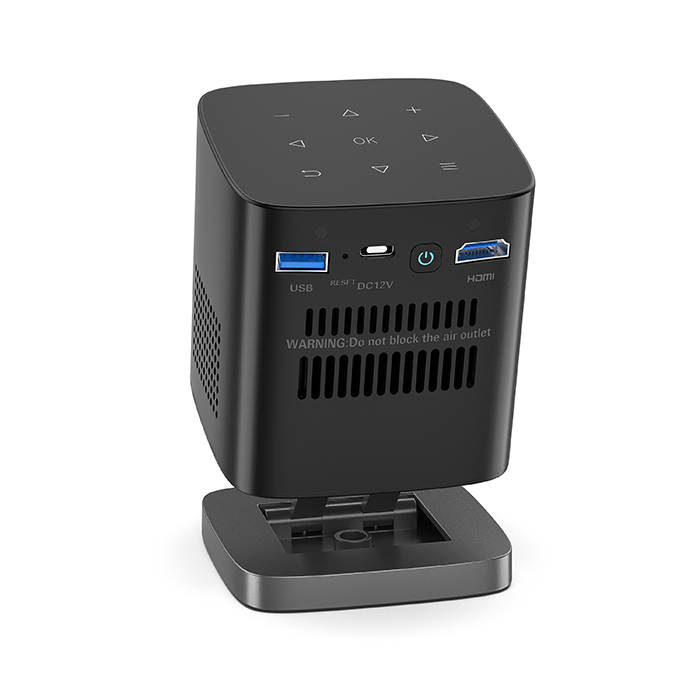

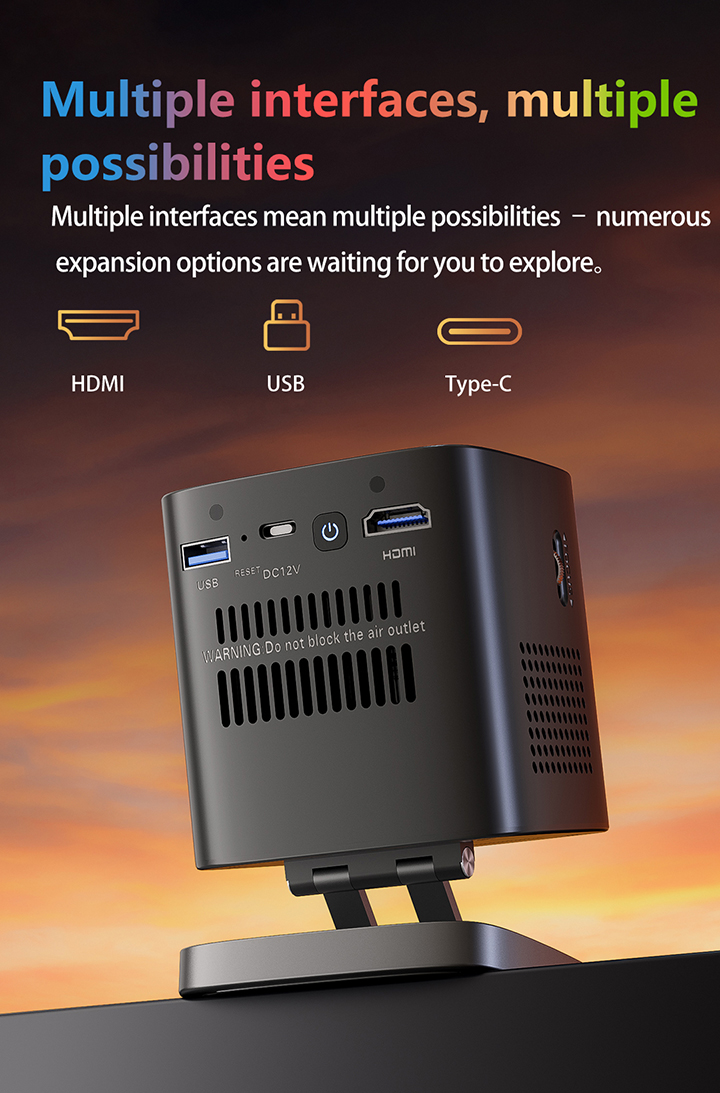

Interface parameters
|
|
Extended Memory
|
Support U disk and SSD solid state drive
|
|
USB input
|
USB HOST 2.0* 1
|
|
HD input
|
Support HD 2.0 input
|
|
Type-C
|
Type-C port charge, support with Type-C protocol mobile power supply and power adapter supply
|
|
Electrical Specifications
|
|
Total Power Consumption
|
10W
|
|
Built-in battery
|
Built-in 8000mAh/29.6Wh lithium battery
|
|
Packaging Parameters
|
|

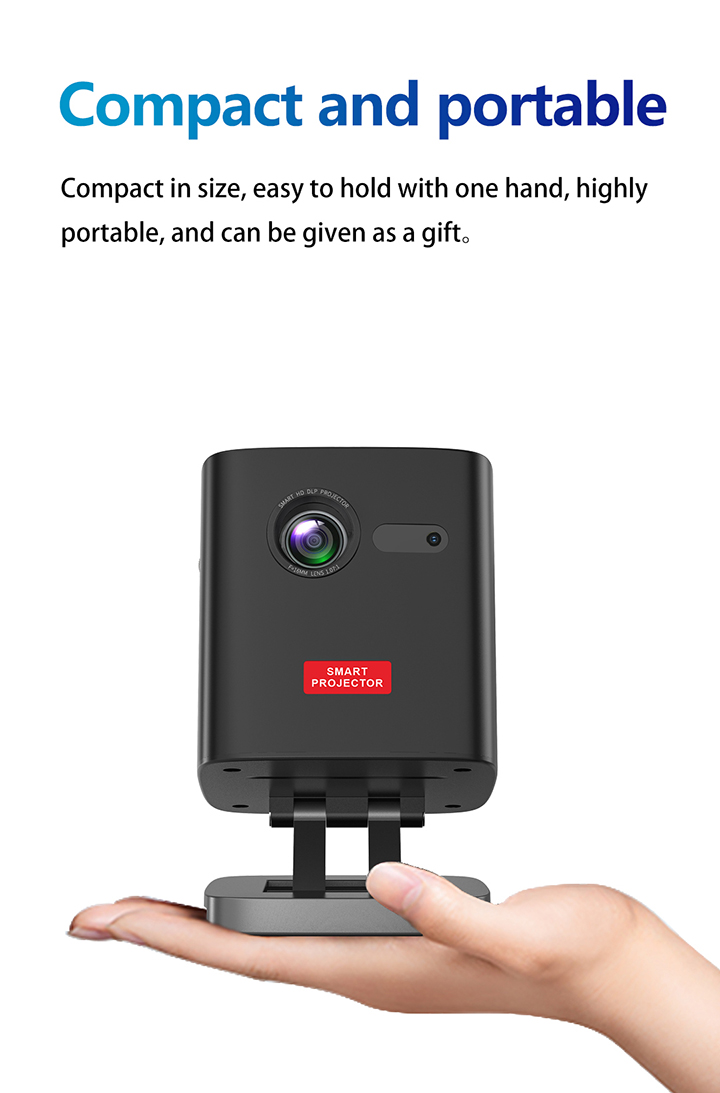

Projector Size
|
8.2x8.2x9.6cm
|
|
Package Size
|
13x25x13cm
|
|
Net Weight
|
480g
|
|
Package Weight(1set)
|
1.1kg
|
|
Carton Weight(12sets/Box)
|
14kg
|
|
Carton Size(12sets/Box)
|
54x27x44cm
|
|
Power input
|
Power Adapter 12V/2A DC IN
|
|
Battery life
|
140 minutes in highlight mode, 170 minutes in standard mode, 240minutes in power saving mode
|
|
Charging time
|
Fully charged in about 3hours (can be used while charging)
|
|
Packing list
|
|

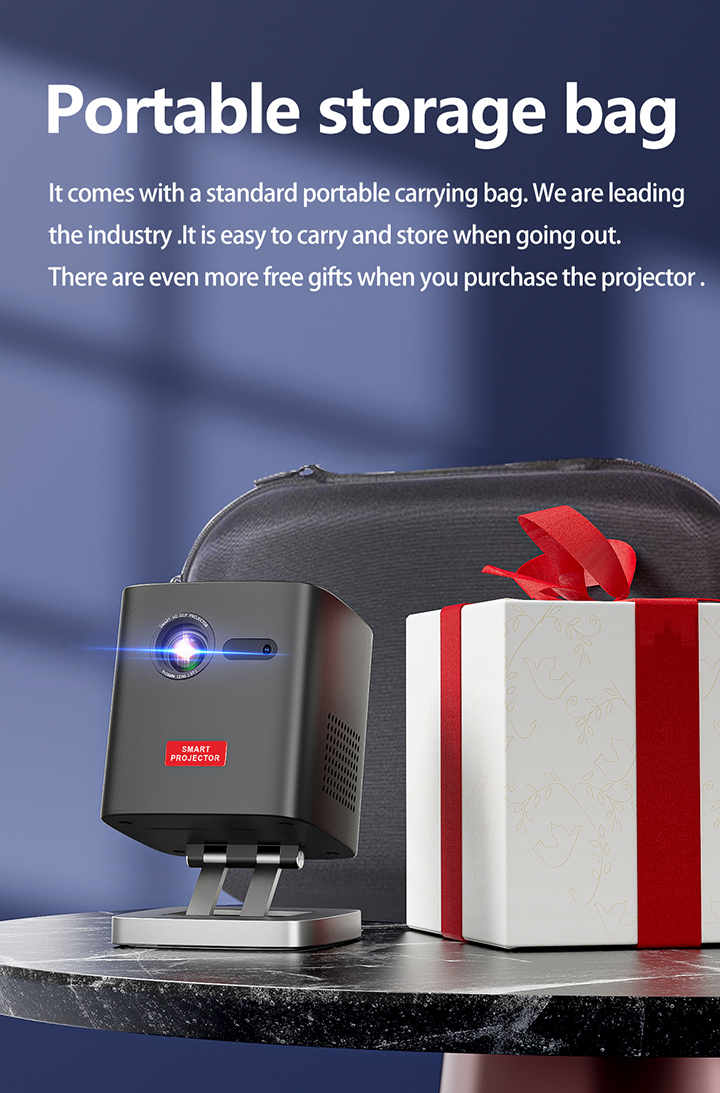

C1000 ,Remote control, Power adapter, Portable storage bag , Product instruction card
|
