Optical parameters
|
|
Projector technology
|
Texas Instruments Ti DLP technology
|
|
Display chip
|
Ti 0.45 inch DMD (with off-axis 100% optical machine)
|

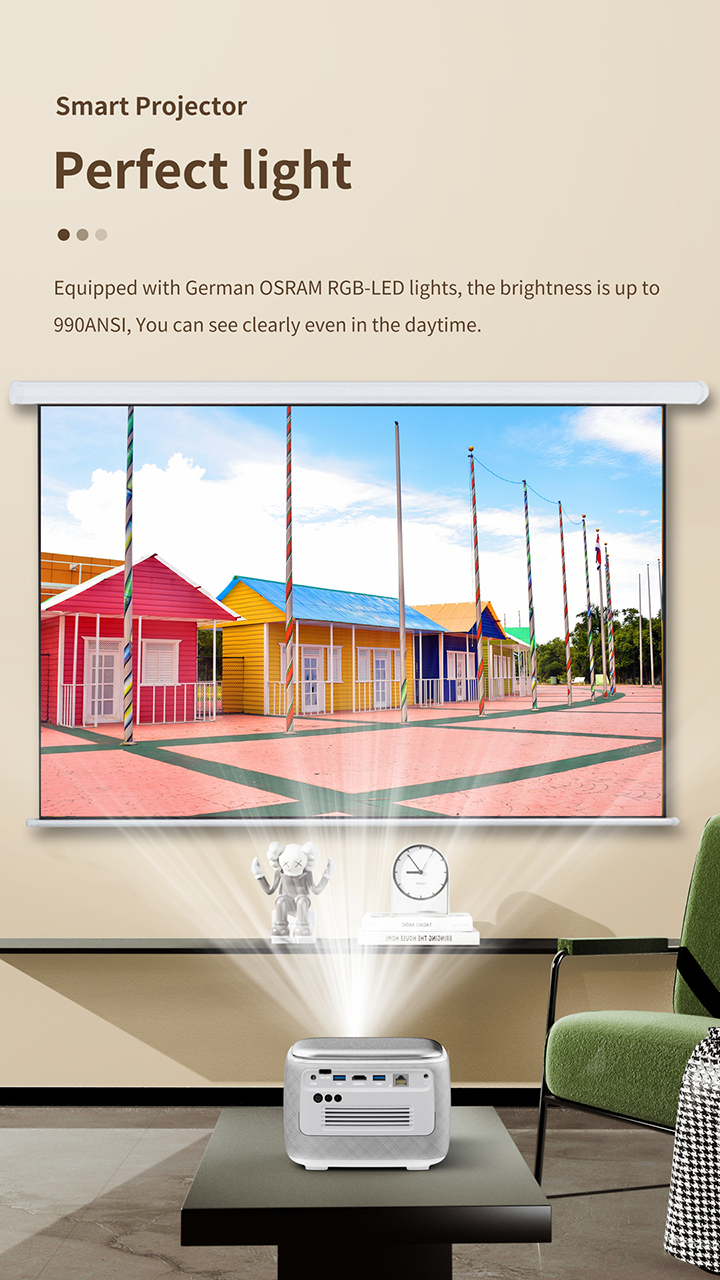

Type of light source
|
Osram RGB-LED light
|
|

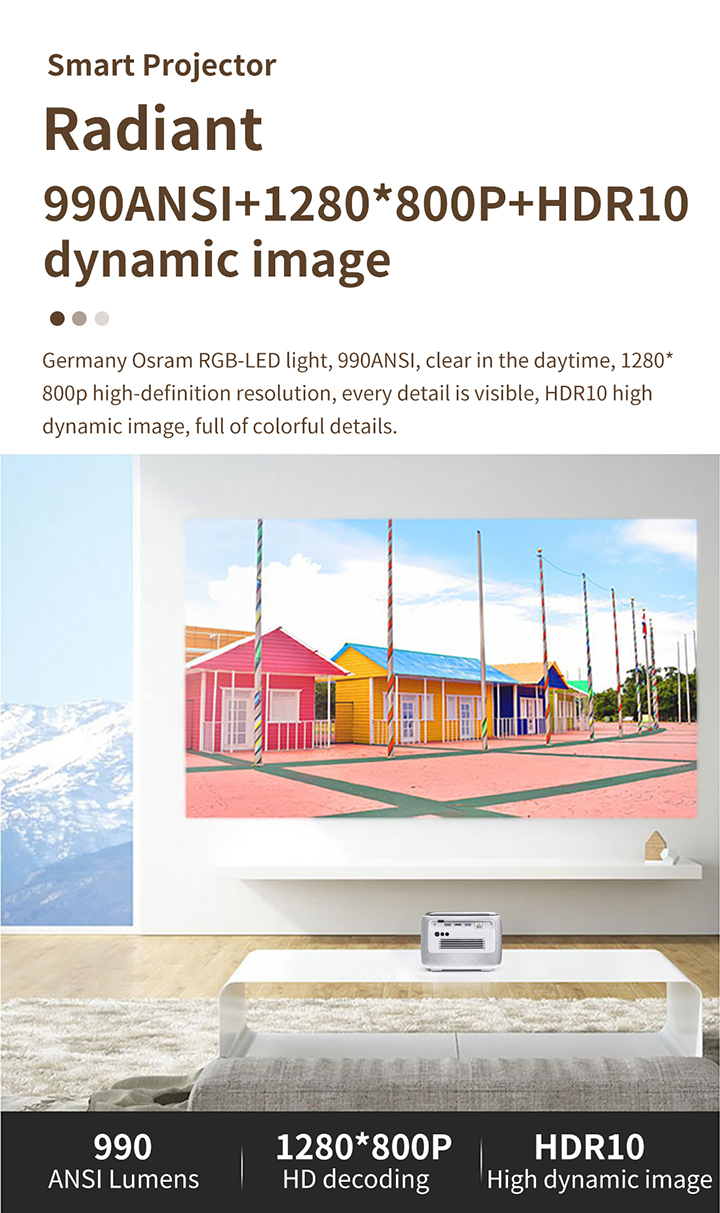

Projection brightness
|
600ANSI (International standard)
|
|
Physical resolution
|
1280* 800P, support 4K
|
Image quality uniformity
|
>98%
|
|
Contrast FOFO
|
5000:1
|
3D technology
|
Support 3D function DLP-LINK shutter 3D glasses
|
|
Projection parameter
|
|
Throw ratio
|
1.2:1
|
|
Projection frame
|
38“@ 1 meter
|
Projection size
calculation method
|
Projection ratio (1.2)*projection size (100 inches) * 16:9 screen length (0.0254*0.8716)
|
|
Screen width ratio
|
16:9
|
|

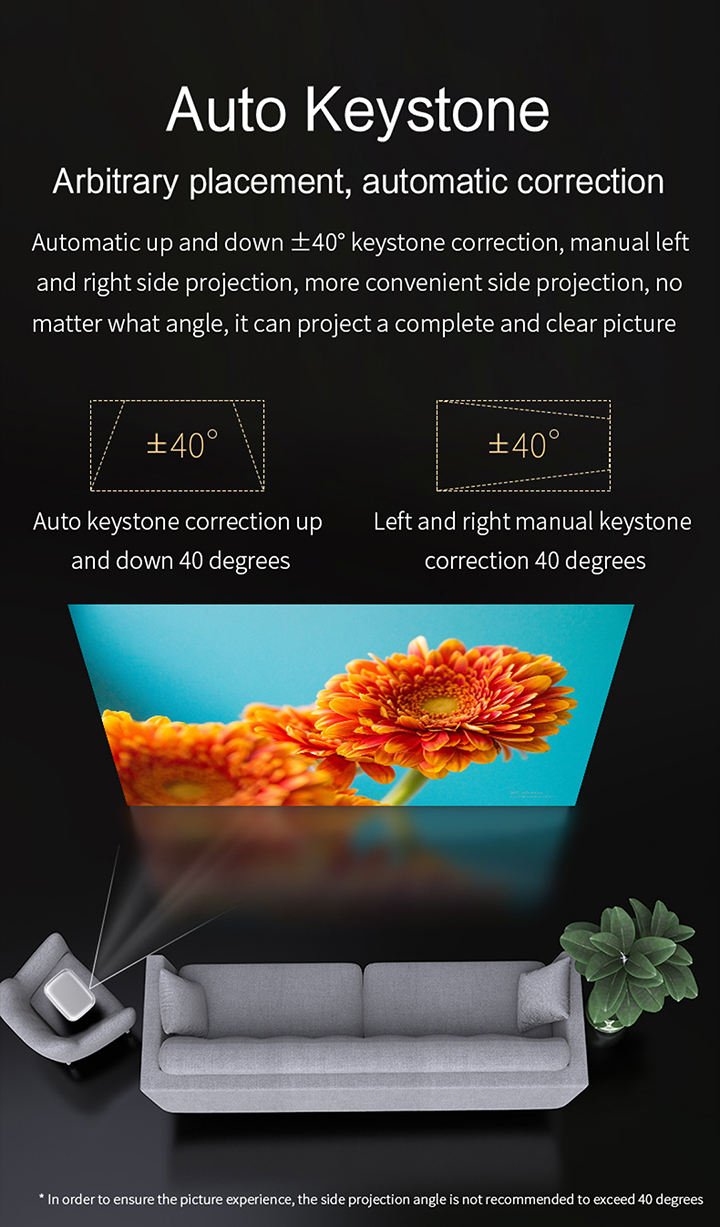

Keystone correction
|
Automatic up and down keystone correction ±40 ° , support manual side projection function
|
|
Projection method
|
Support automatic up, down, left, and right keystone correction ±40 ° ,and Manual side casting function
|
|

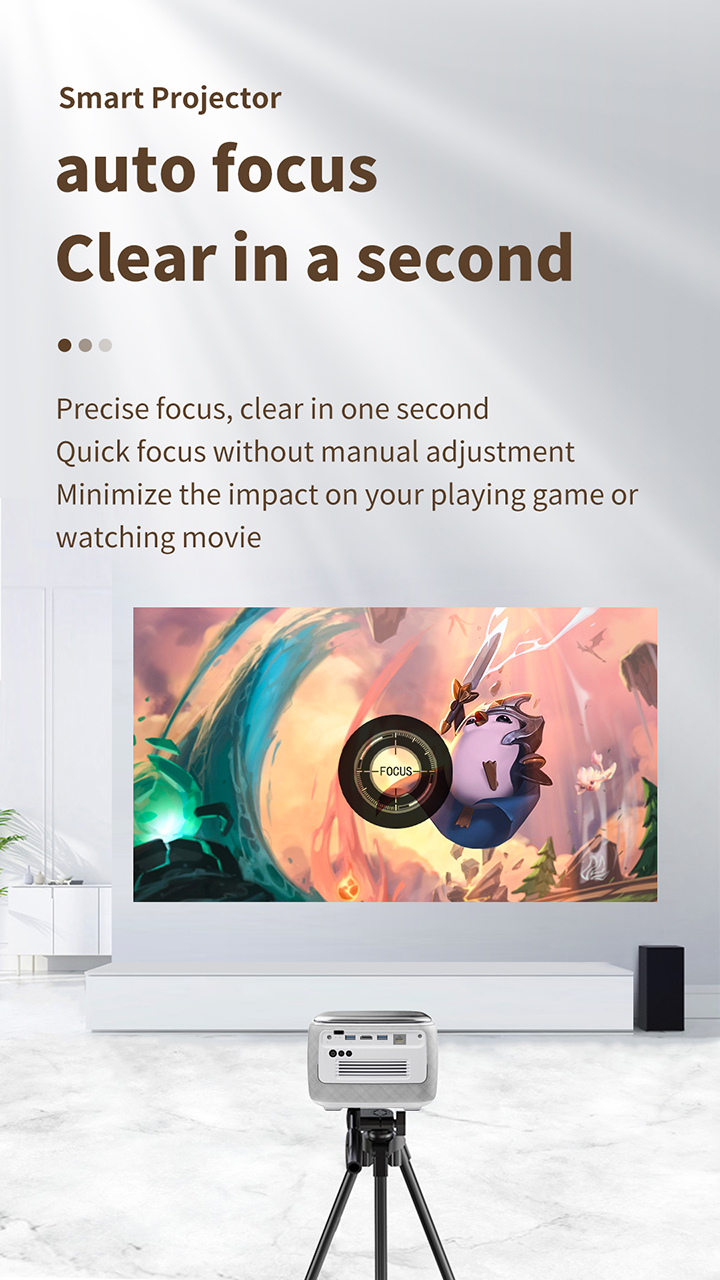

Focusing method
|
TOF laser Auto Focus
|
|
Built-in speaker
|
5W*2(Super bass surround sound)
|
|
System parameters
|
|
CPU
|
MTK9630 Decode 4K H265/AVS2 4K*2K/30HZ
|
Clock Speed
|
64-bit CPU: Contex A53 4-core GPU: Mali-G52
|
|
RAM
|
2GB DDR3
|
|
ROM
|
32GB eMMC
|
|
Operating System
|
Google-TV
|
|
BT
|
BT5 .0 (can be connected to an external Bluetooth mouse, BT speaker, mouse, gamepad)
|
|
WiFi
|
2.4G+5G dual-band
|
|
Remote Control
|
Standard BT remote control, support for external USB
2.4G wireless remote control, BT remote control mouse
|
|
Input support
|
U disk, mobile hard disk, mouse, keyboard access, computer, set-top box
|
|

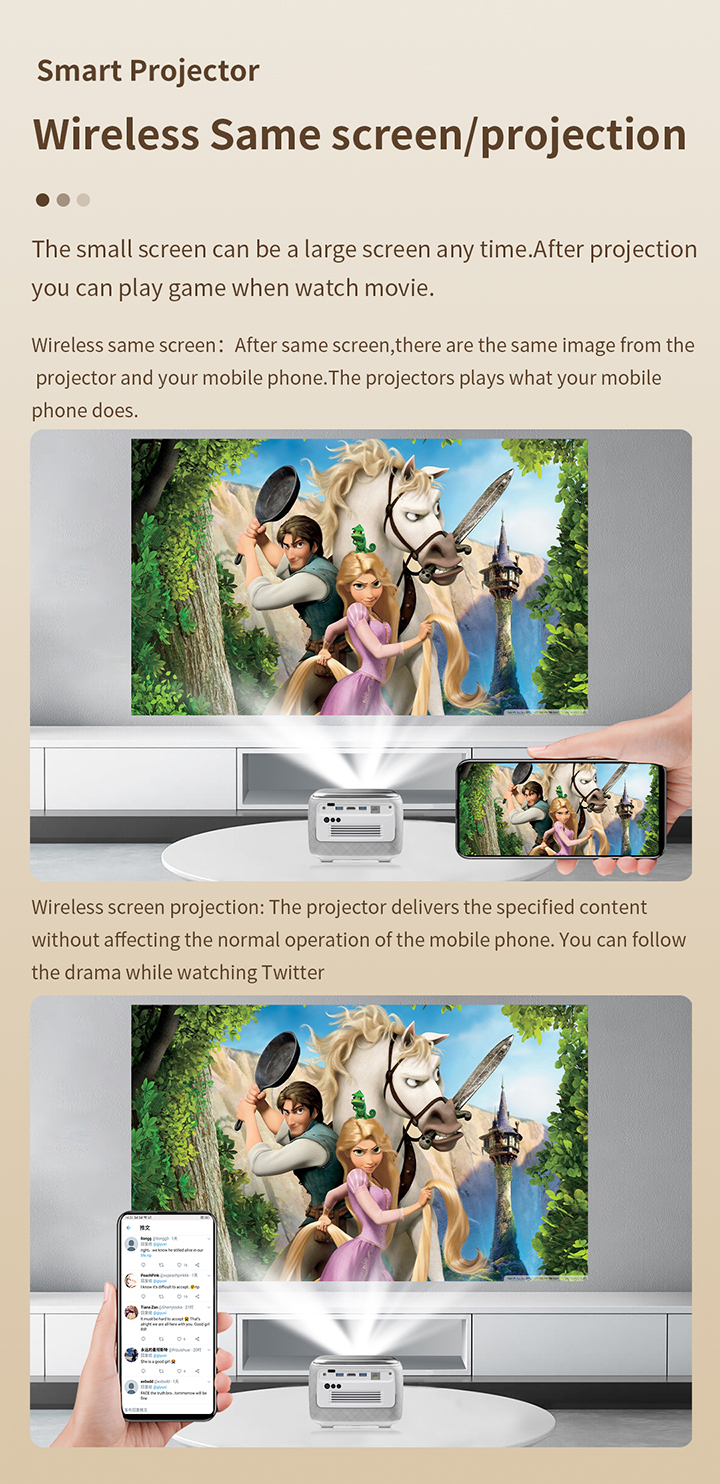

Wireless same screen
|
Support WiFi LAN on the same screen + outdoor no network hotspot on the same screen
|
|
Wired same screen
|
Supports ios screen projection with a cable
|
|

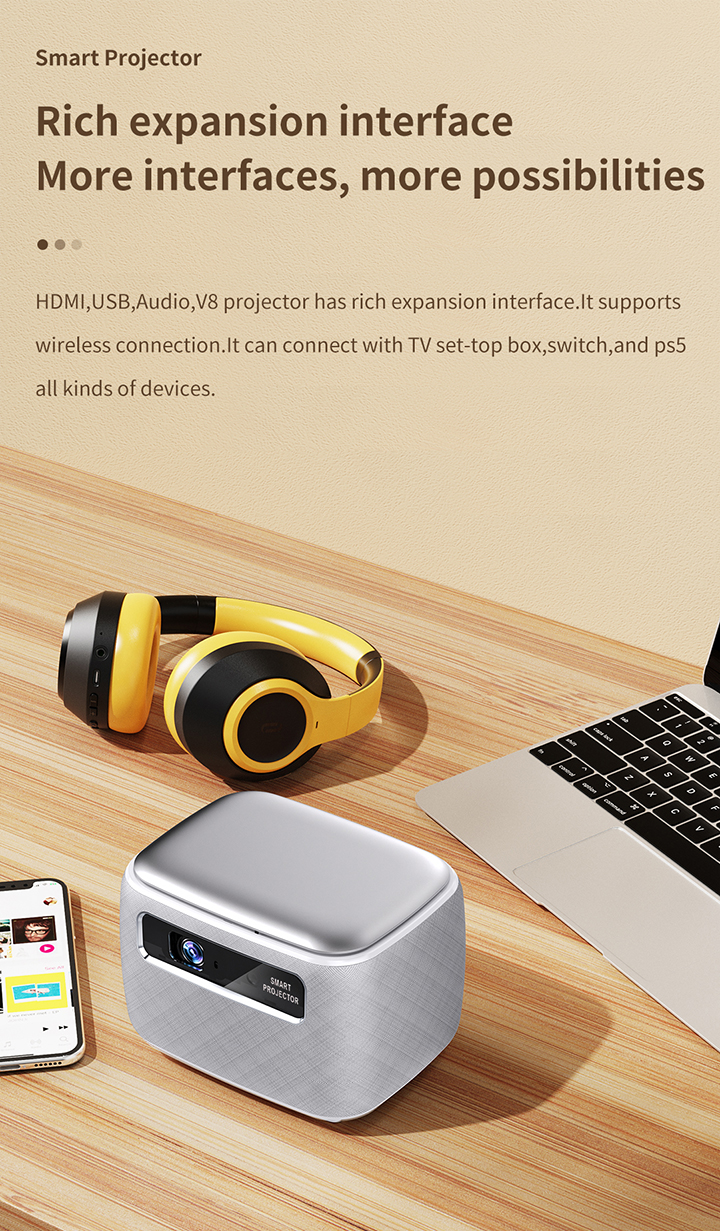

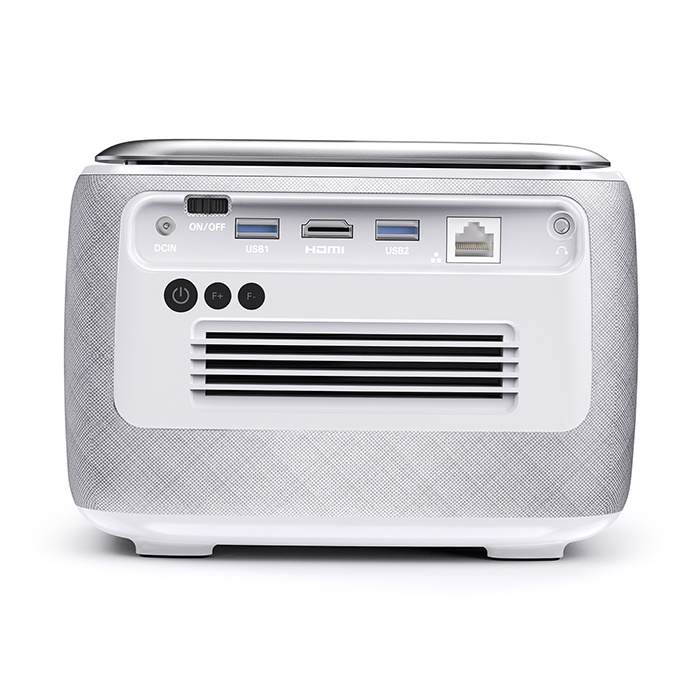

Interface parameters
|
|
Headphone Output
|
Audio output, 3.5mm connector (headphones or speakers can be connected)
|
|
USB
|
USB HOST 2.0*2
|
|
HD
|
Support HD 2.0 input
|
|
Ethernet input
|
Supports Network interface
|
|
Headphone Output
|
Audio output, 3.5mm connector (headphones or speakers can be connected)
|
|
Electrical Specifications
|
|
Total Power Consumption
|
45W
|
|
Power Input
|
Power adapter 19V 3.42A DC IN
|
|
Product size
|

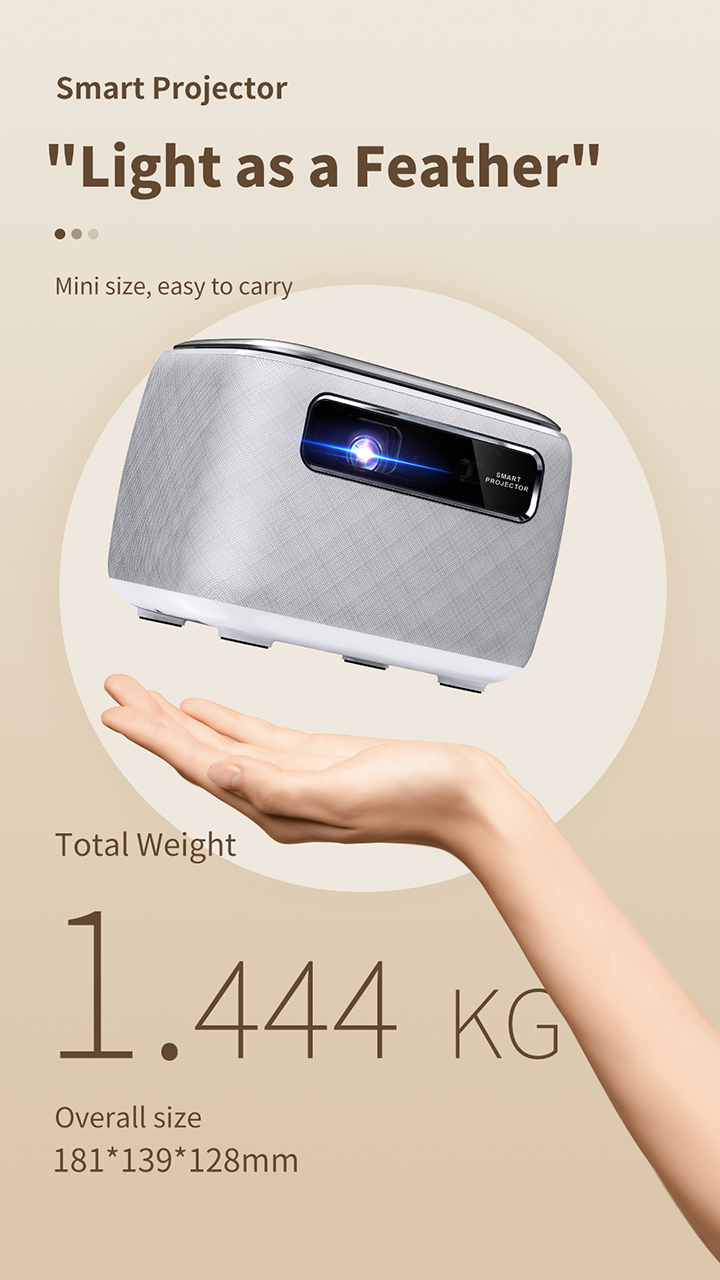

18x14x13cm
|
|
Packing size
|
25x26x17cm
|
|
Net Weight
|
1.5kg
|
|
Packing weight
|
2.6kg
|
|
Package Weight(4sets/box)
|
21.5kg
|
|
Carton size(4sets/box)
|
50x51x35cm
|
|
Packing list
|
|

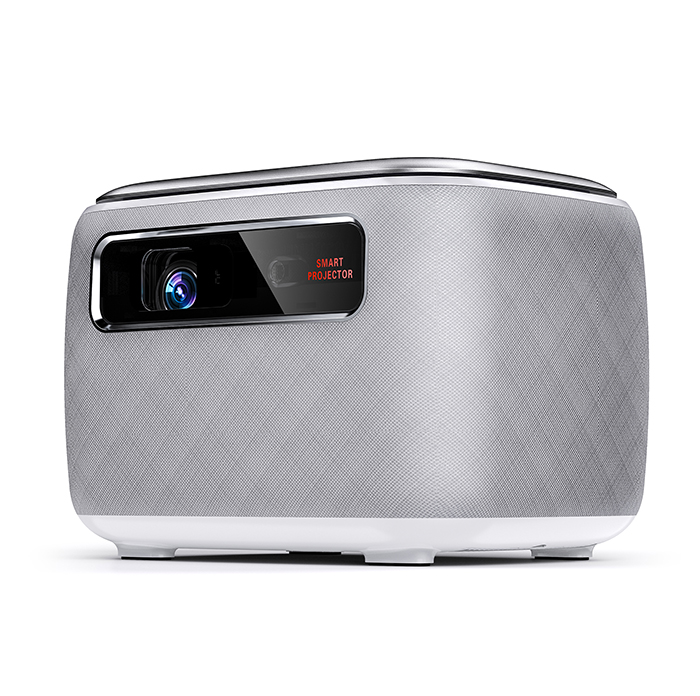

V8 ,Remote control, power adapter , Product instruction card
|
