Optical parameters
|
|
Projector technology
|
Texas Instruments Ti DLP technology
|
|
Display chip
|
Ti 0.23 inch DMD (with off-axis 100% optical machine)
|
Type of light source
|
Osram RGB-LED light
|
|

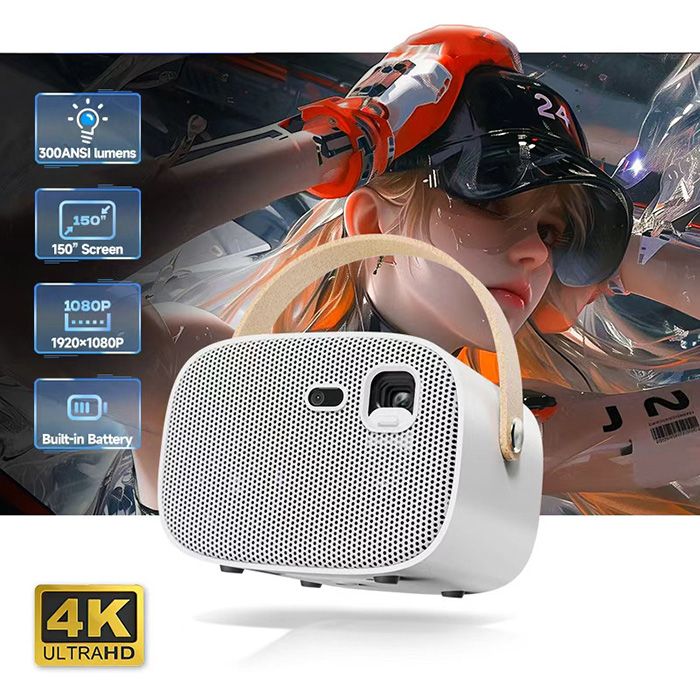

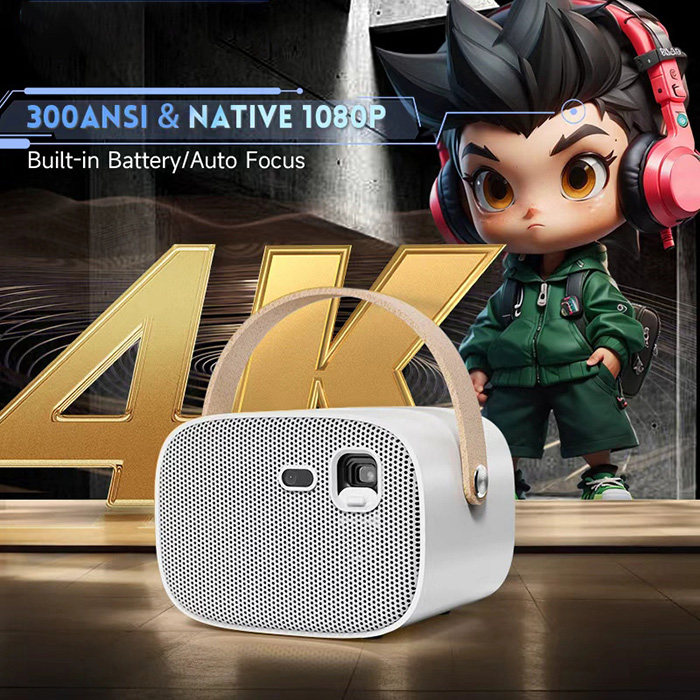

Projection brightness
|
300ANSI (International standard)
|
|
Physical resolution
|
1920*1080XPR
|
Image quality uniformity
|
>90%
|
|
Contrast FOFO
|
5000:1
|
3D technology
|
Support 3D function DLP-LINK shutter 3D glasses
|
|
Projection parameter
|
|
Throw ratio
|
1.2:1
|
|
Projection frame
|
38“@1 meter
|
Projection size
calculation method
|
Projection ratio (1.2m)*projection size (100 inches)*16:9
screen length (0.0254*0.8716)
|
|
Screen width ratio
|
16:9
|
|
Keystone correction
|
Automatic trapezoidal correction ±30°, support manual side casting function
|
Projection method
|
Support front projection, rear projection, and hanging projection
|
|
Focusing method
|

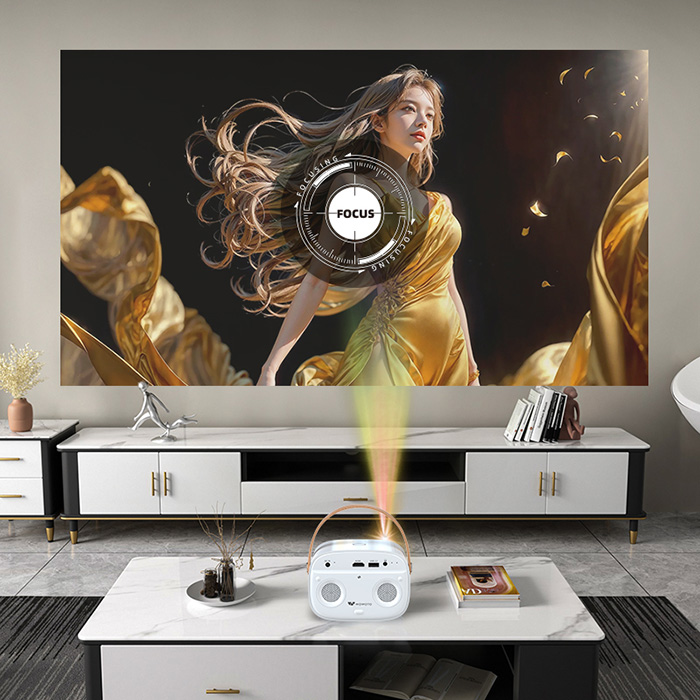

TOF laser Auto focus
|
|
Built-in speaker
|
5W*2 (Super bass surround sound)
|
|
Fuselage material
|
Metal ABS,+Body lens adopts closed optical design, to ensure that the lens will not be scratched for 10 years
|
|
Touch the fuselage
|
Support for 9-point touch navigation control
|
|
System parameters
|
|
CPU
|
Amlogic T972 Decode 4K H265/AVS2 4K*2K/60HZ
|
Clock Speed
|
64-bit CPU: Contex A53 4-core GPU: Mali-G31
|
|
Cache
|
2GB DDR3
|
|
ROM
|
32GB eMMC
|
|
Operating System
|
AOSP Android 9.0
|
|
BT
|
BT5 .0 (can be connected to an external BT mouse, BT speaker, mouse, gamepad)
|
|
WiFi
|
2.4G+5G dual-band
|
|
Remote Control
|
Standard BT remote control, support for external USB
2.4G wireless remote control, BT remote control mouse
|
|
Input support
|
U disk, mobile hard disk, mouse, keyboard access, computer, set-top box
|
|
Wireless same screen
|
Support WiFi LAN on the same screen + outdoor no network hotspot on the same screen
|
|

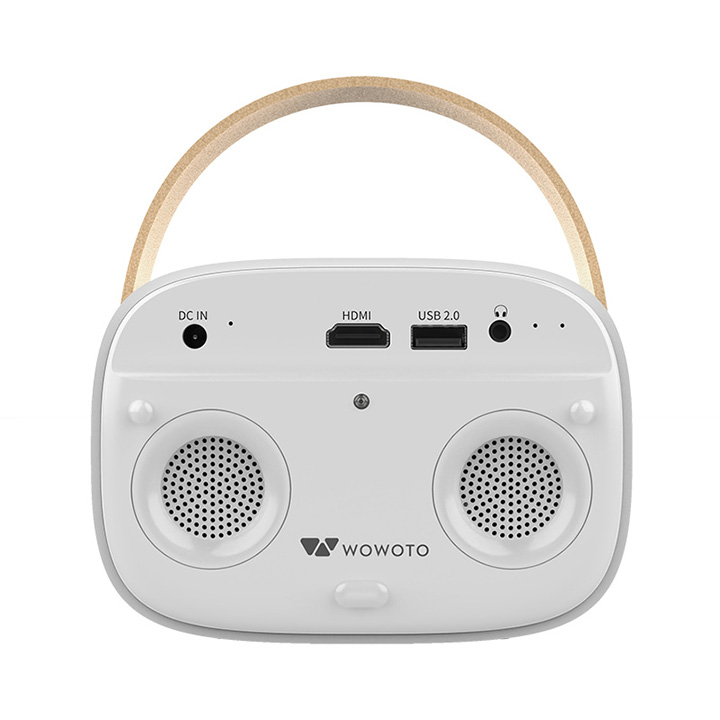

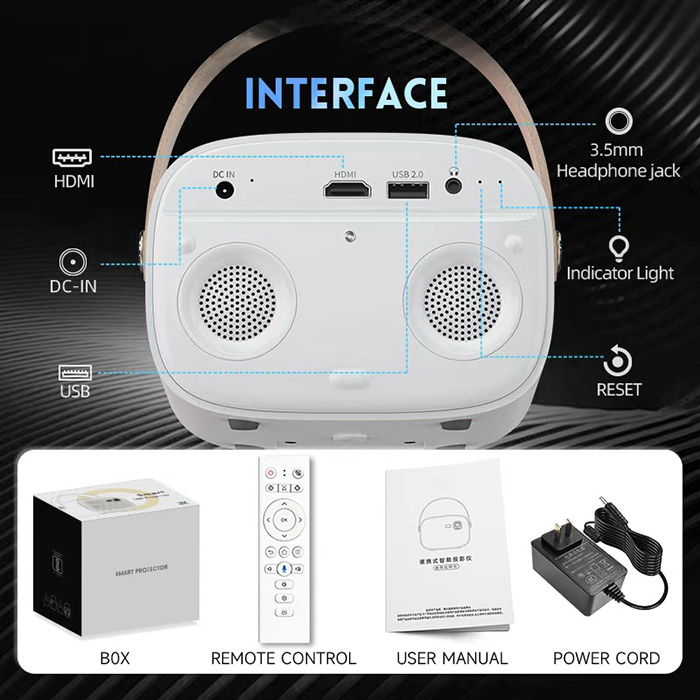

Interface parameters
|
|
Extended Memory
|
Support U disk and SSD solid state drive
|
|
USB input
|
USB HOST 2.0* 1
|
|
HD input
|
Support HD 2.0 input
|
|
Electrical Specifications
|
|
Total Power Consumption
|
25W
|
|
Built-in battery
|
Built-in 15000mAh lithium battery 55.5Wh
|
|
Projector size
|
14x10.5x10cm
|
|
Packing size
|
23x22x20cm
|
|
Net weight
|
0.85kg
|
|
Packing weight
|
1.66kg
|
|
Carton weight(8sets/box)
|
19.7kg
|
|
carton size
|
49x41x38cm
|
|
Power input
|
Power Adapter 12V/2.1A
|
|
Battery life
|
120 minutes in highlight mode, 140 minutes in standard mode, 210 minutes in power saving mode
|
Charging time
|
Fully charged in about 3 hours (can be used while charging)
|
|
Packing list
|
|
M3 , Remote control, Power adapter, Product instruction card
|
