Optical parameters
|
|
Projector technology
|
Texas Instruments Ti DLP technology
|
|
Display chip
|

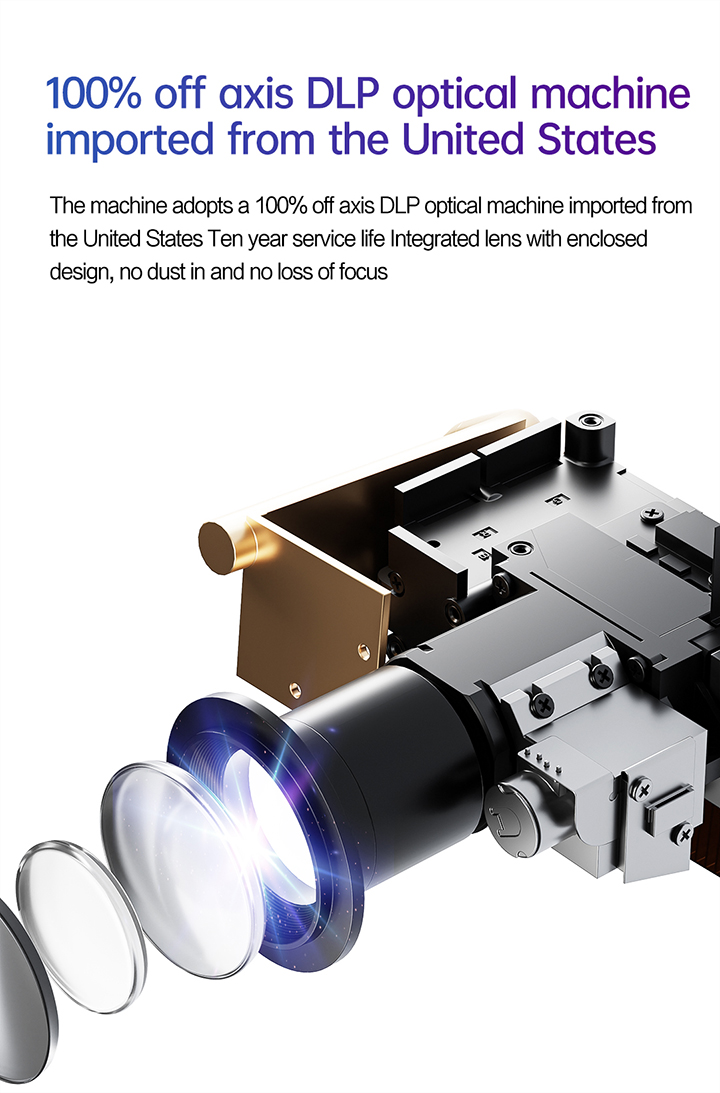

Ti 0.23 inch DMD (with off-axis 100% optical machine)
|
Type of light source
|
Osram RGB-LED light
|
|

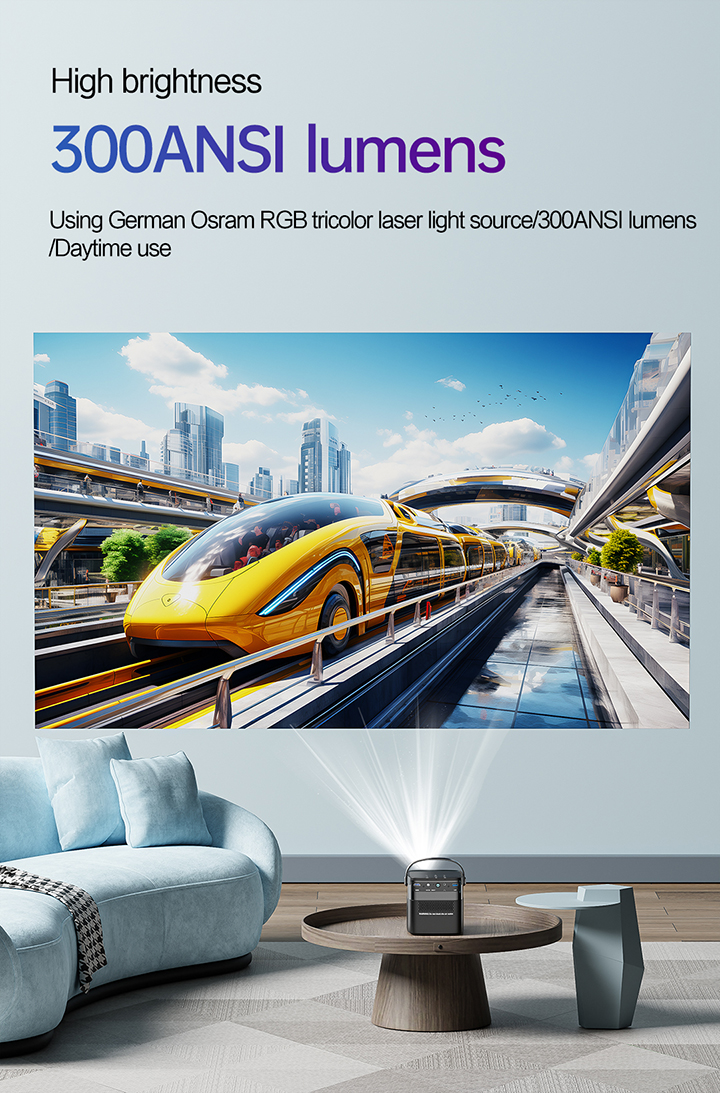

Projection brightness
|
300ANSI (International standard)
|
|
Physical resolution
|
1920*1080XPR
|
Image quality uniformity
|
>90%
|
|
Contrast FOFO
|
5000:1
|
3D technology
|
Support 3D function DLP-LINK shutter 3D glasses
|
|
Projection parameter
|
|

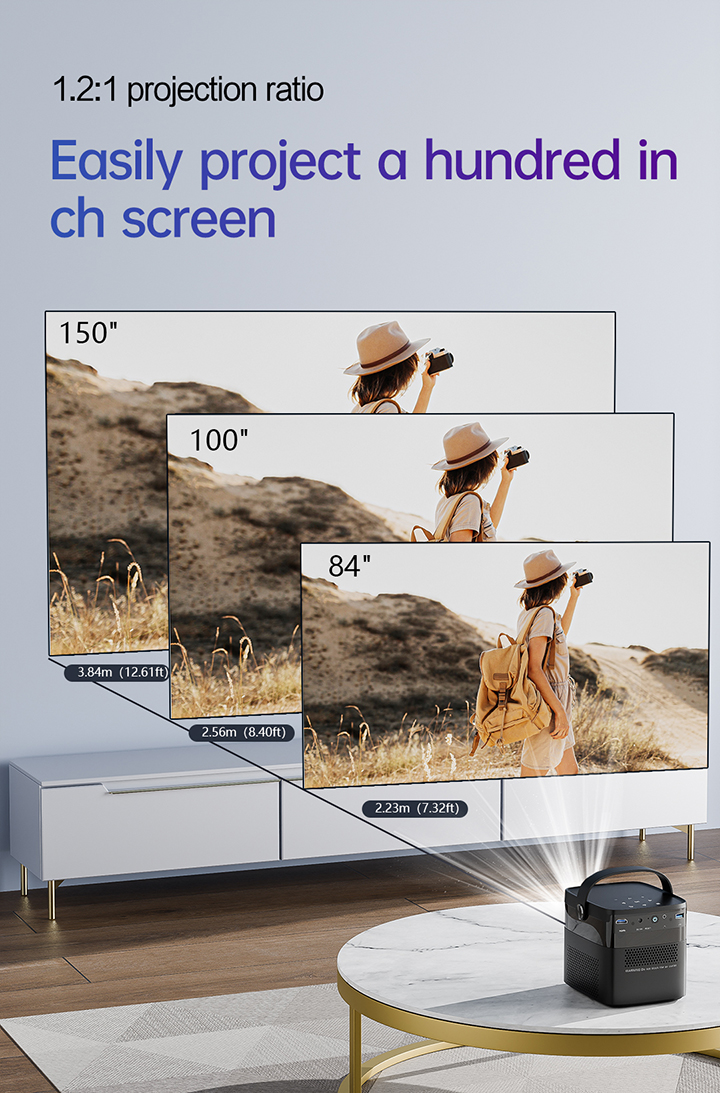

Throw ratio
|
1.2:1
|
|
Projection frame
|
38“ @ 1 meter
|
Projection size
calculation method
|
Projection ratio (1.2)*projection size ( 100 inches)*16:9
screen length (0.0254*0.8716)
|
|
Screen width ratio
|
16:9
|
|
Keystone correction
|

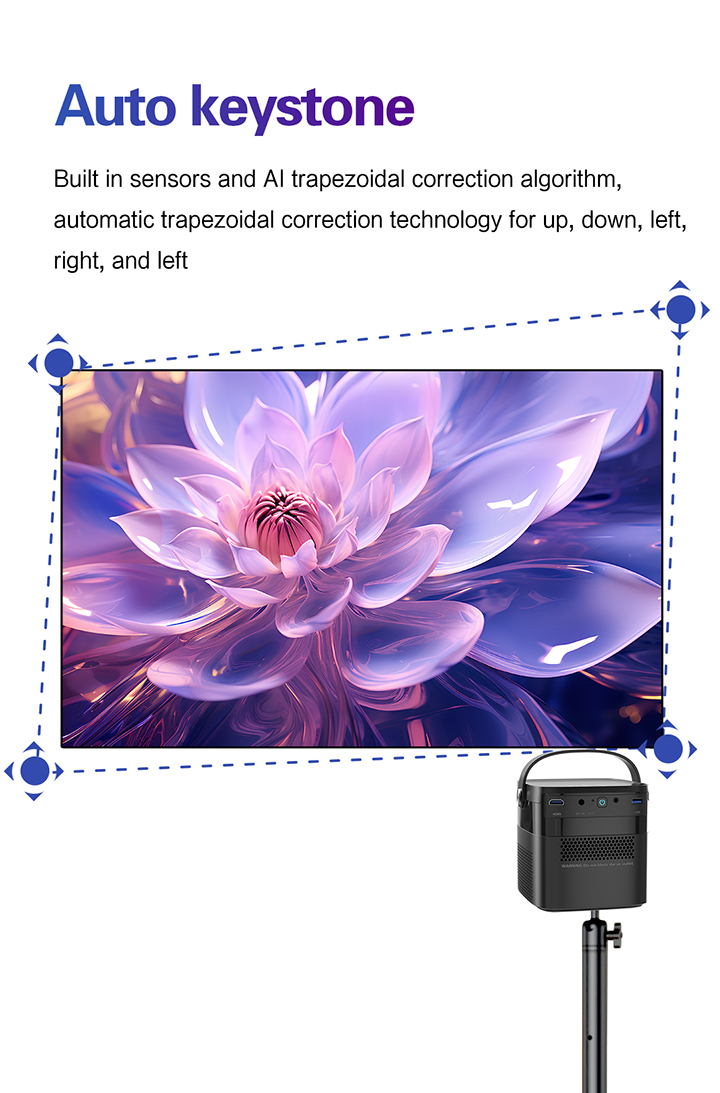

Automatic trapezoidal correction ±30°, support manual side casting function
|
Projection method
|
Support front projection, rear projection, and hanging projection
|
|
Focusing method
|
TOF laser Auto focus Keystone
|
|
Built-in speaker
|
10W*2(Super bass surround sound)
|
|
Fuselage material
|
ABS+PC,+Body lens adopts closed optical design, to ensure that the lens
will not be scratched for 10 years
|
|

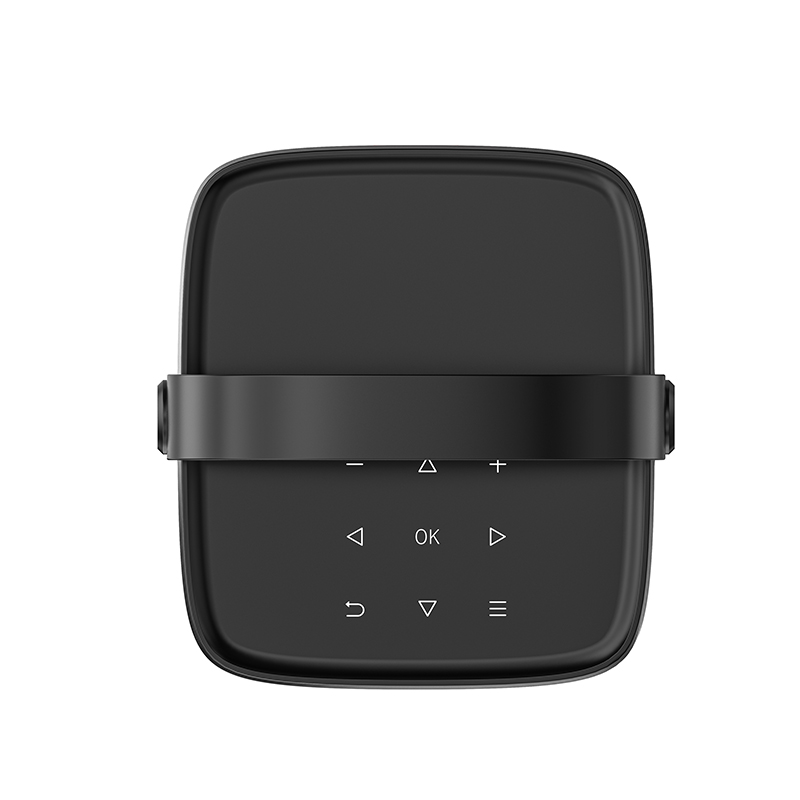

Touch the fuselage
|

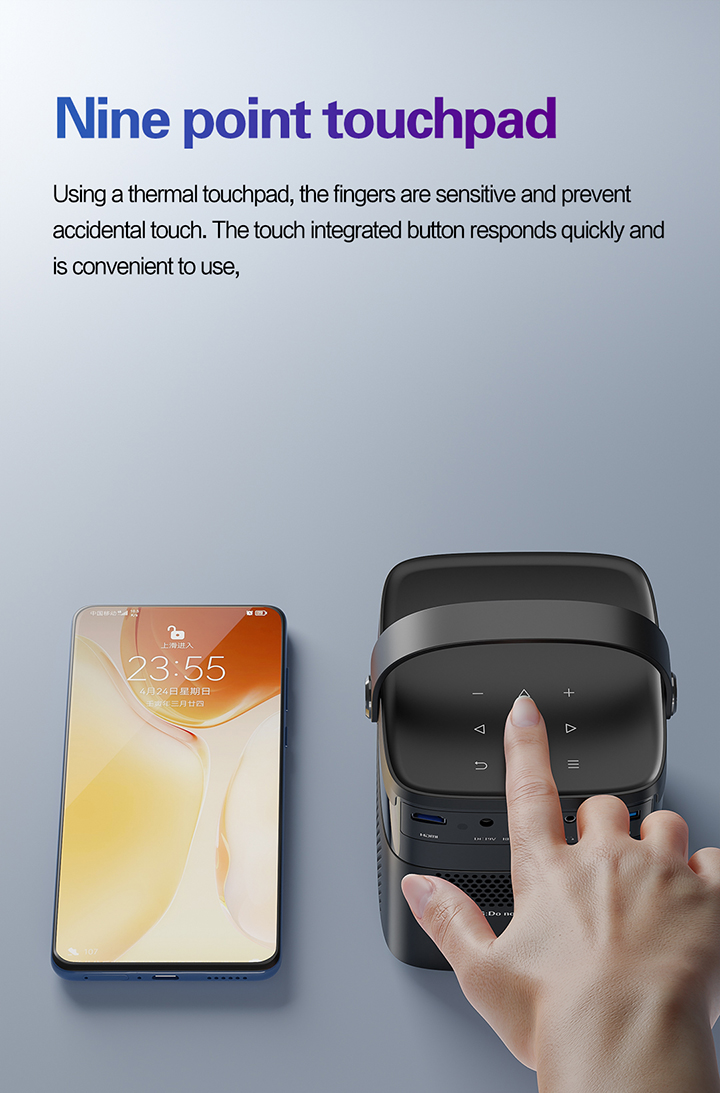

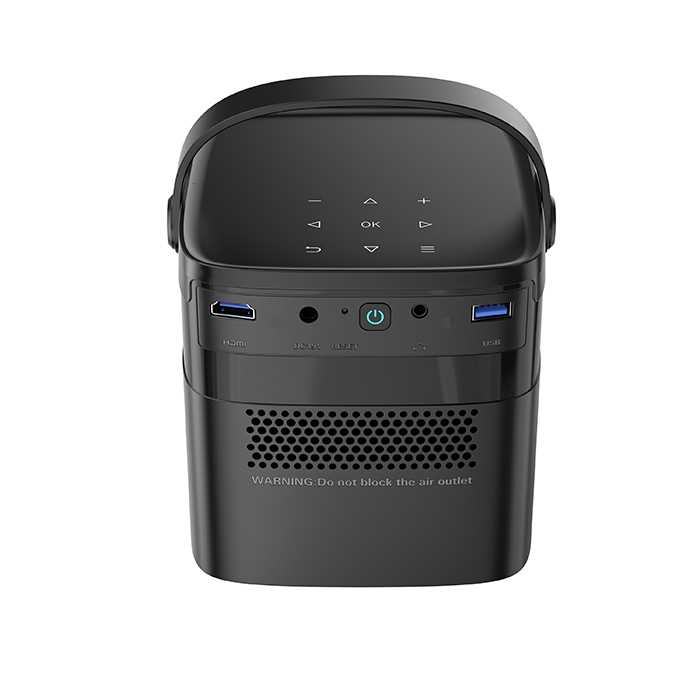

Support for 9-point touch navigation control
|
|
System parameters
|
|
CPU
|
MTK Decode 4K H265/AVS2 4K*2K/30HZ
|
Clock Speed
|
64-bit CPU: Contex A53 4-core GPU: Mali-G31
|
|
Cache
|
2GB DDR3
|
|
ROM
|
32GB eMMC
|
|
Operating System
|
AOSP Android 9.0
|
|

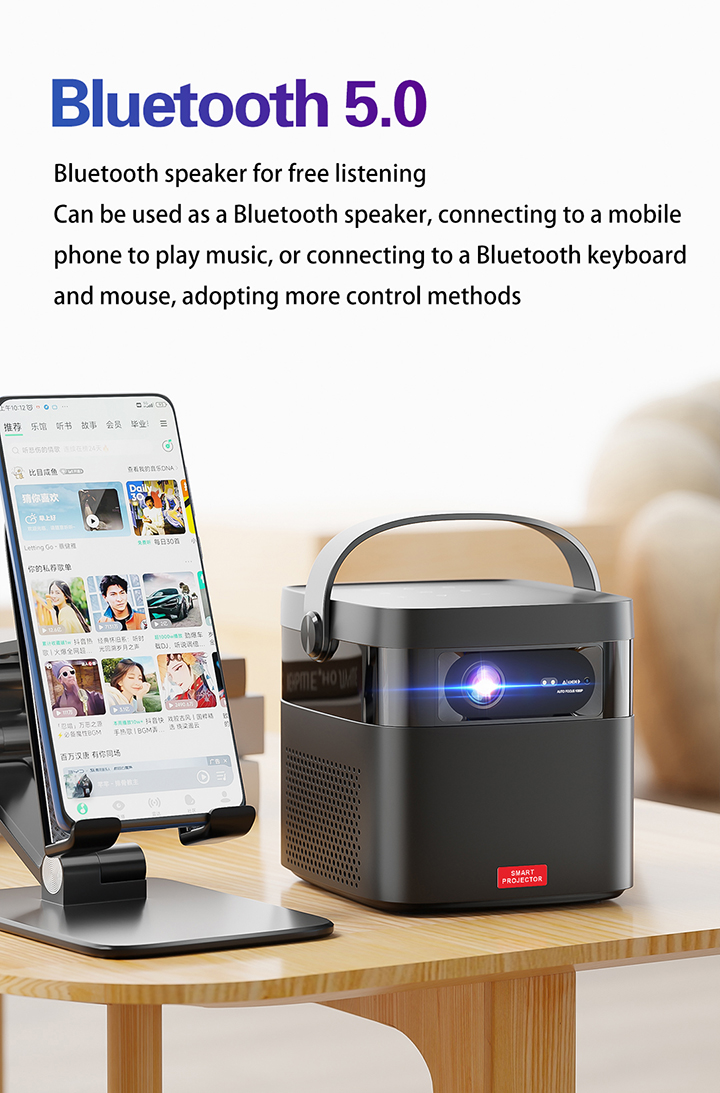

BT
|
BT5 .0 (can be connected to an external BT mouse, BT speaker, mouse, gamepad)
|
|
WiFi
|
2.4G+5G dual-band
|
|
Remote Control
|
Standard BT remote control, support for external USB
2.4G wireless remote control, BT remote control mouse
|
|
Input support
|
U disk, mobile hard disk, mouse, keyboard access, computer, set-top box
|
|
Wireless same screen
|
Support WiFi LAN on the same screen + outdoor no network hotspot on the same screen
|
|
Interface parameters
|
|
Extended Memory
|
Support U disk and SSD solid state drive
|
|
USB input
|
USB HOST 2.0* 1
|
|

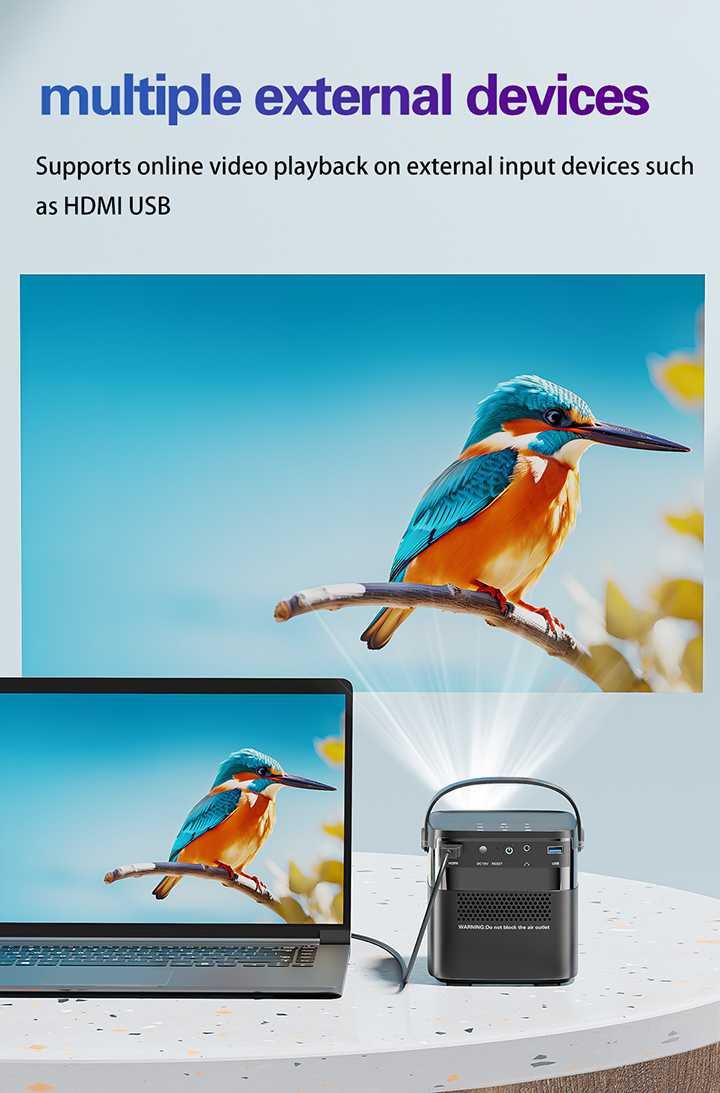

HD input
|
Support HD 2.0 input
|
|
Headphone Output
|
Audio output, 3.5mm connector (headphones or speakers can
be connected)
|
|
Electrical Specifications
|
|
Total Power Consumption
|
25W
|
|
Built-in battery
|
Built-in 15000mAh lithium battery 55.5Wh
|
|

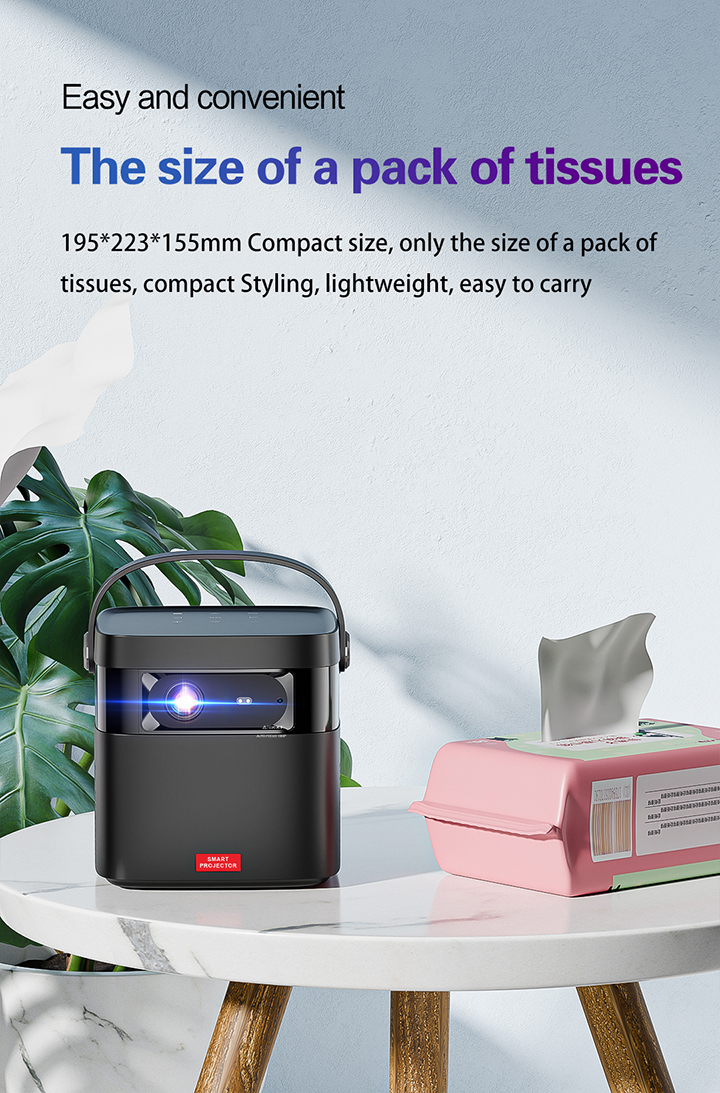

Projector Size
|
15x13x13cm
|
|
Package Size
|
21x24x17cm
|
|
Net Weight
|
1.11kg
|
|
Package Weight(1 set)
|
1.97kg
|
|
Carton Weight(9Sets/box)
|
19kg
|
|
Carton Size(9Sets/box)
|
60x27x53cm
|
|
Power input
|
Power Adapter 19V/3.42A DC IN
|
|
Battery life
|
120 minutes in highlight mode, 140 minutes in standard mode,
170 minutes in power saving mode
|
Charging time
|
Fully charged in about 3 hours (can be used while charging)
|
|
Packing list
|
|
M2, Remote control, power adapter, power cord , Product instruction card
|
