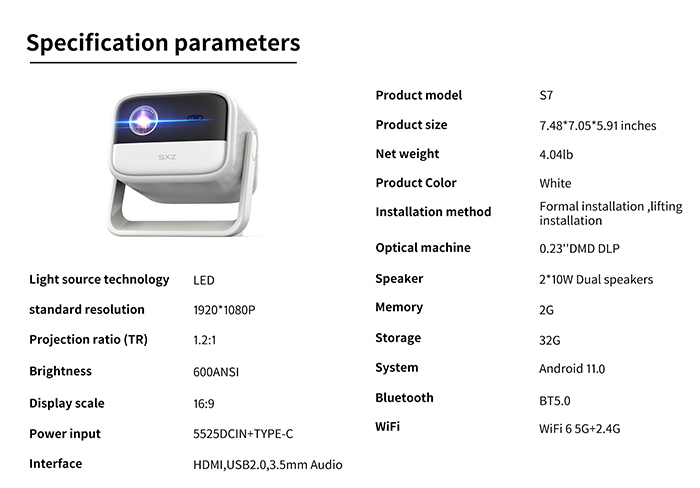

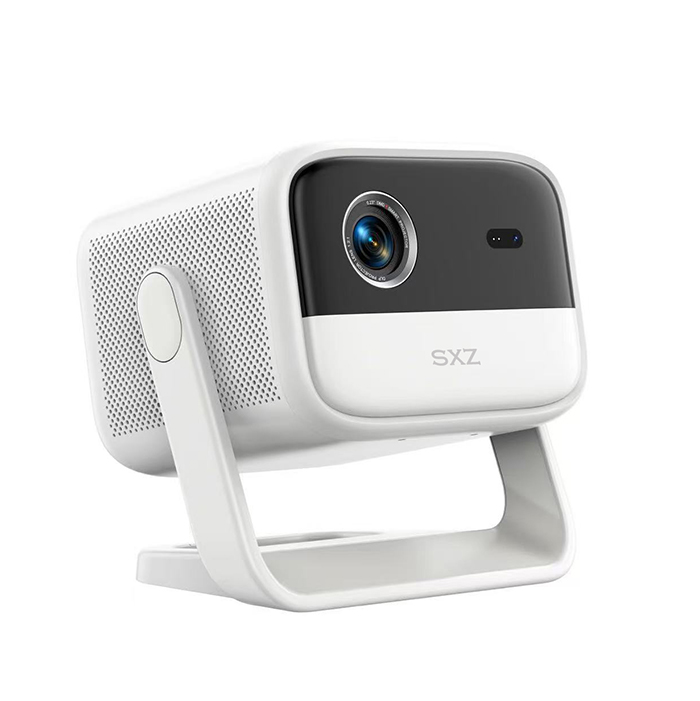

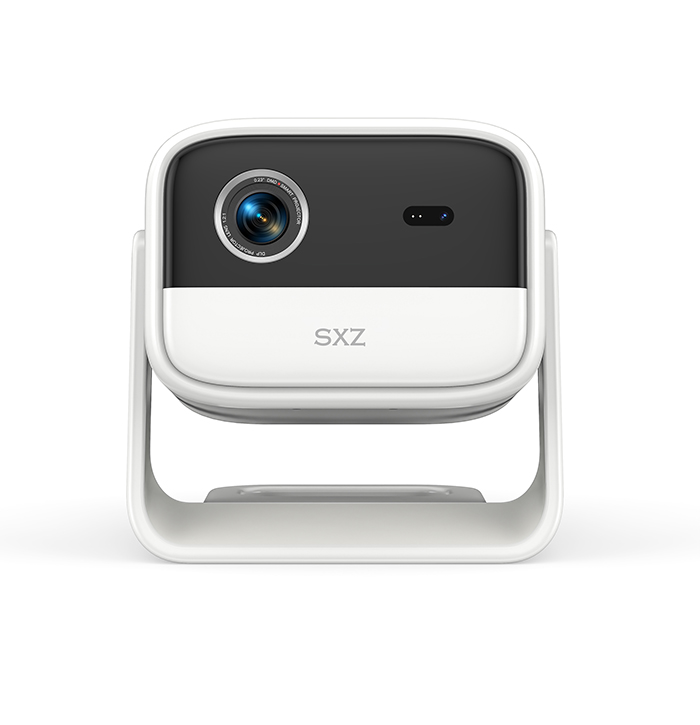

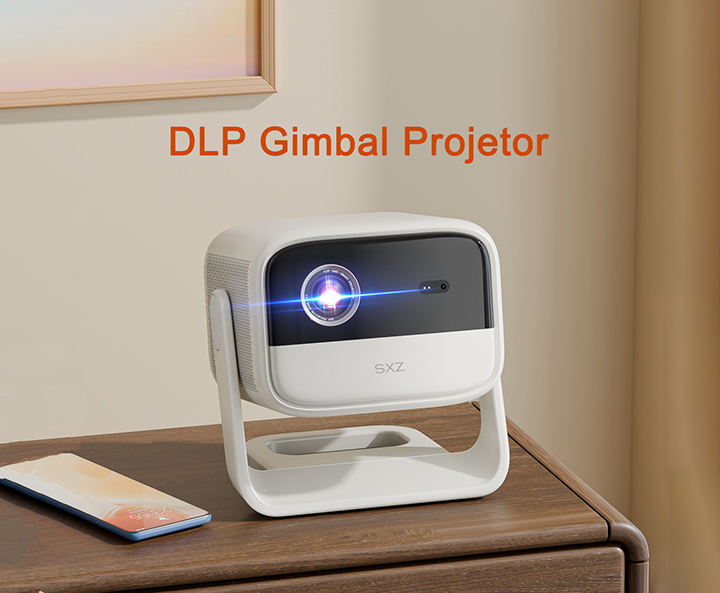

SXZ S7 Built in Battery 1080P DLP Projector
|
|
Projector technology
|
Texas Instruments Ti DLP technology
|
|

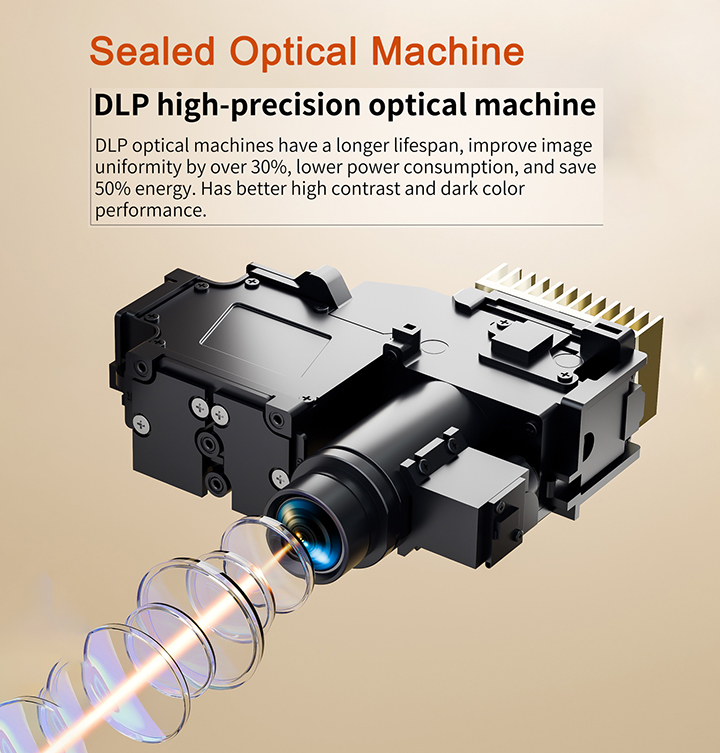

Display chip
|
Ti 0.23 inch DMD (with off-axis 100% optical machine)
|
|
Type of light source
|
Osram 4 LED RGB+PB light
|
|
Projection brightness
|
600ANSI (International standard)
|
|
Physical resolution
|
1920*1080P, Support 4K
|
|
Image quality uniformity
|
>90%
|
|
Contrast FOFO
|
5000:1
|
|
3D technology
|
Support 3D function DLP-LINK shutter 3D glasses
|
|
Projection parameter
|
|

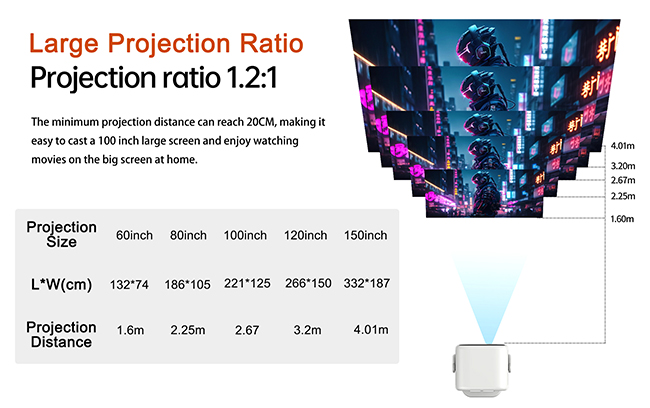

Throw ratio
|
1.2:1
|
|
Projection frame
|
37.4“@1 meter
|
Projection size
calculation method
|
Projection ratio (1.2)*projection size (100 inches)*16:9 screen length (0.0254*0.8716)
|
|
Screen width ratio
|
16:9
|
|
Keystone correction
|
Automatic up and down keystone correction ±40°, support manual side projection function
|
|
Projection method
|
Support front projection, rear projection, and hanging projection
|
|
Focusing method
|
ST L8 TOF laser Auto focus keystone
|
|

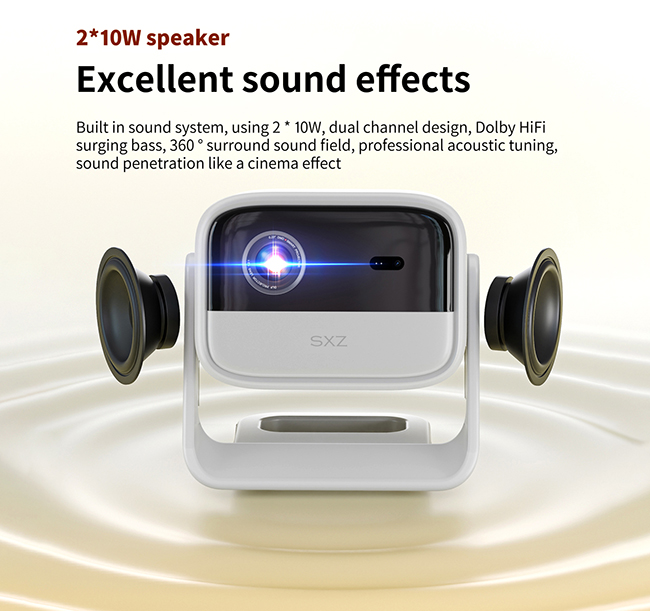

Built-in speaker
|
10W*2(Super bass surround sound)
|
|
Fuselage material
|
Metal ABS,+Body lens adopts closed optical design, to ensure that the lens. Will not be scratched for 10 years
|
|
System parameters
|
|
CPU
|
MTK Decode 4K CPU: Contex A73 4-core GPU: Mali-G52 MC1
|
Clock Speed
|
64-bit CPU: Contex A53 4-core GPU: Mali-G52
|
|
Cache
|
2GB DDR4
|
|
ROM
|
32GB eMMC
|
|
Operating System
|
Android 11.0
|
|
BT
|
BT5.0 (can be connected to an external BT mouse, BT speaker, mouse, gamepad)
|
|
WiFi
|
2.4G+5G dual-band
|
|
Remote Control
|
Standard BT remote control, support for external USB 2.4G wireless remote control, BT remote control mouse
|
|
Input support
|
U disk, mobile hard disk, mouse, keyboard access, computer, set-top box
|
|
MEMC
|
Support 1080P 60HZ
|
|
Wireless same screen
|
Support WiFi LAN on the same screen + outdoor no network hotspot on the same screen
|
|

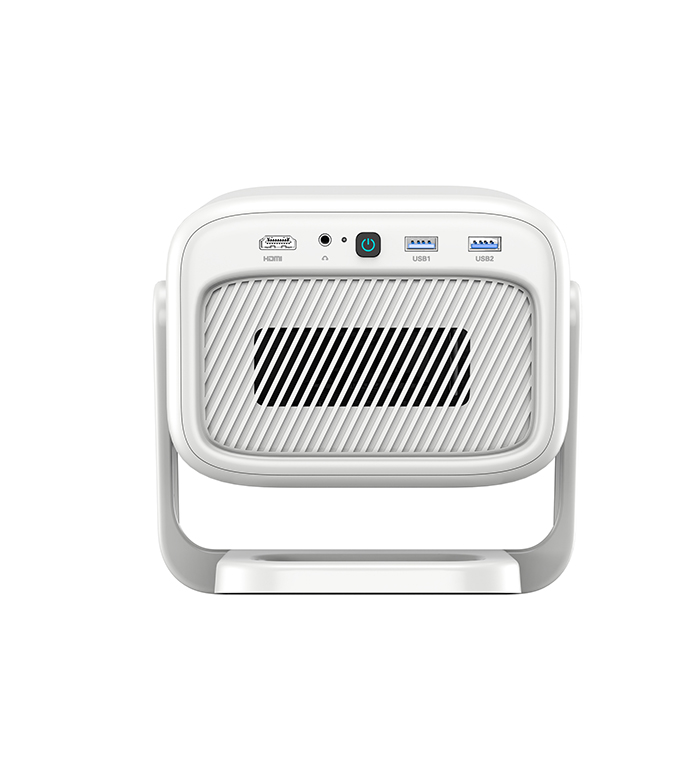

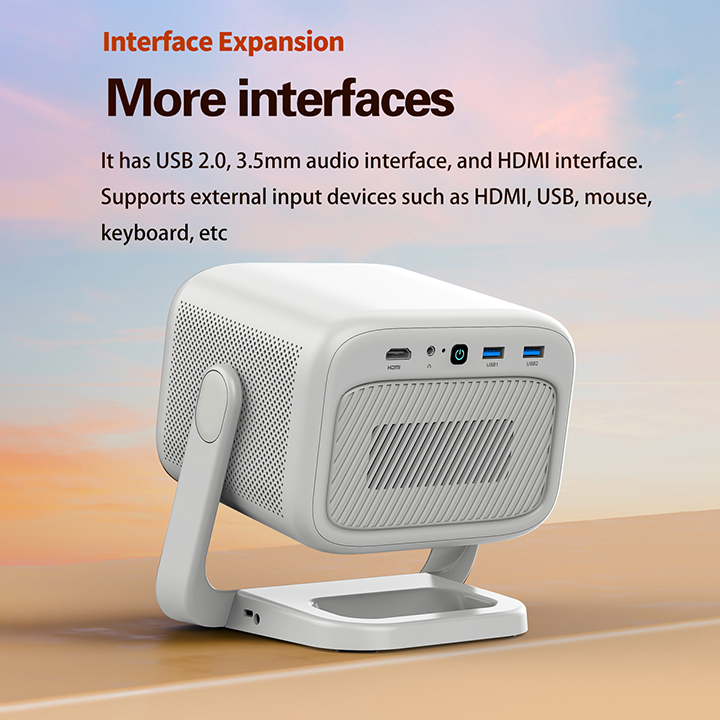

Interface parameters
|
|
Extended Memory
|
Support U disk and SSD solid state drive
|
|
USB input
|
USB HOST 2.0* 1
|
|
HD input
|
Support HD 2.0 input
|
|
Headphone Output
|
Audio output, 3.5mm connector (headphones or speakers can be connected)
|
|
Electrical Specifications
|
|
Total Power Consumption
|
55W
|
|

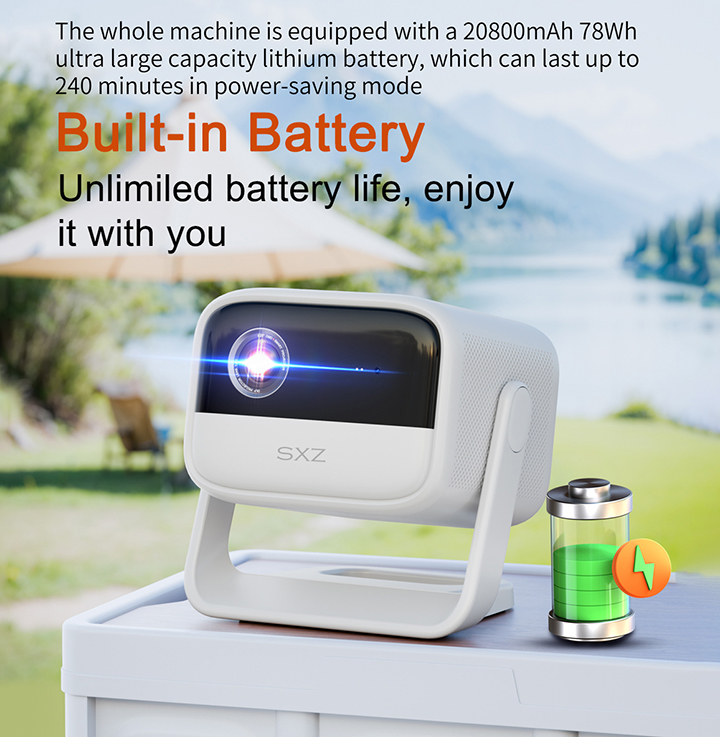

Built-in battery
|
Built-in 20800mAh lithium battery 76.8Wh
|
|
Projector size
|
19x15.3x18.3cm
|
|
Package size
|
31x18x27cm
|
|
Net Weight
|
1.95kg
|
|
Package Weight
|
3.36kg
|
|
Carton Weight(4sets/box)
|
13.5kg
|
|
Carton size(4sets/box)
|
60x43x37cm
|
|

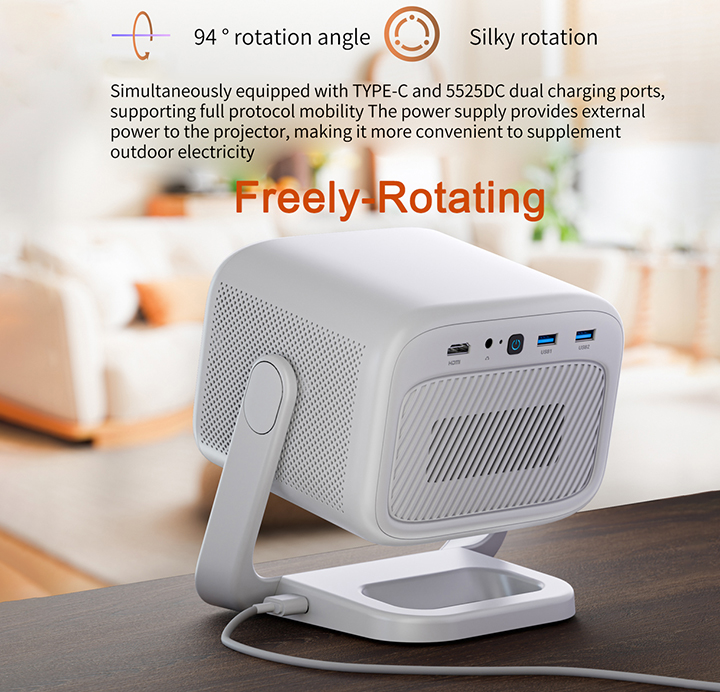

Power input
|
Power Adapter 19V/3.42A DC IN Or TYPE-C 20V5A
|
|
Battery life
|
105 minutes in highlight mode, 120 minutes in standard mode, 200 minutes in power saving mode
|
Charging time
|
Fully charged in about 3.5 hours (can be used while charging)
|
|
Packing list
|
|
S7,Remote control, power adapter, power cord, Product instruction card
|
