System parameters(Global Official Google-TV system)
|
|
Core
|
• Amlogic S905Y4 QuadA35
• 16000 DMIPS
• 32K I/D cache
• 512KB L2cache
• ARM G31 MP2
• OpenGL ES 3.2 Graphics engine
|
|
WiFi
|
2.4G 5G WiFi 6
|
|
Video Formats
|
• 16:9 aspect ratio
• 480i, 480p, 576i, 576p, 720p, 1080i, 1080p24, 1080p30, 1080p60
• 4Kx2Kp30, 4Kx2Kp60
• HEVC H.265
• MPEG-4,MP@ML, MP@HL profiles
• AV1,VC-1/VP8/VP9
• HDR-10, HDR-10+, HLG
|
|
Audio Formats
|
• 32KHz to 192KHz sample rates
• MPEG Audio Layers 1,2and 3
• Dolby Digital MS12
|
|
Wireless same screen
|
Chromcast
|
Optical parameters
|
|
Projector technology
|
LCD technology
|
|
Display chip
|

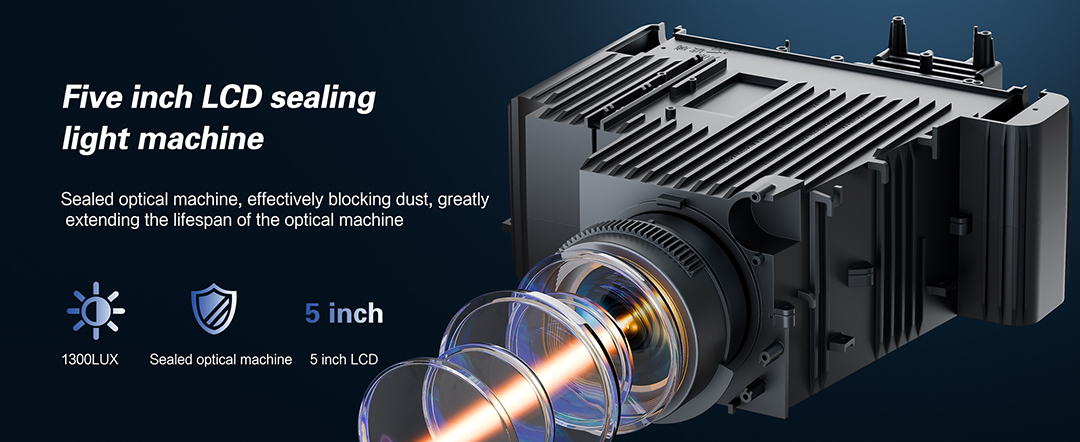

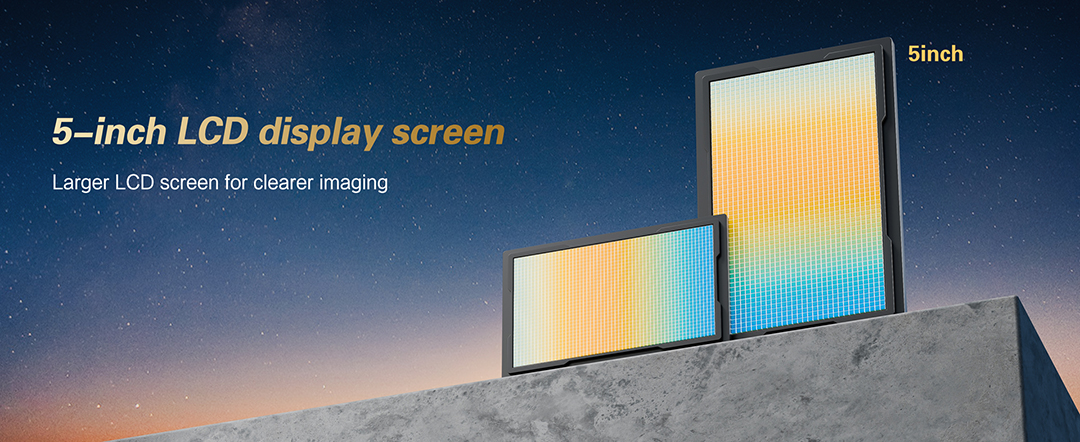

5 inch LCD(Fully Sealed Optical Engine Design)
|
Type of light source
|
100W White LED
|
|
Projection brightness
|
14000Lumens, 650ANSI (International standard)
|
|
Physical resolution
|
1920*1080P, Support 4K
|
Image quality uniformity
|
>70%
|
|
Contrast FOFO
|
5000:1
|
|
Projection parameter
|
|
Throw ratio
|
1.2:1
|
|
Projection frame
|
38“ @ 1 meter
|

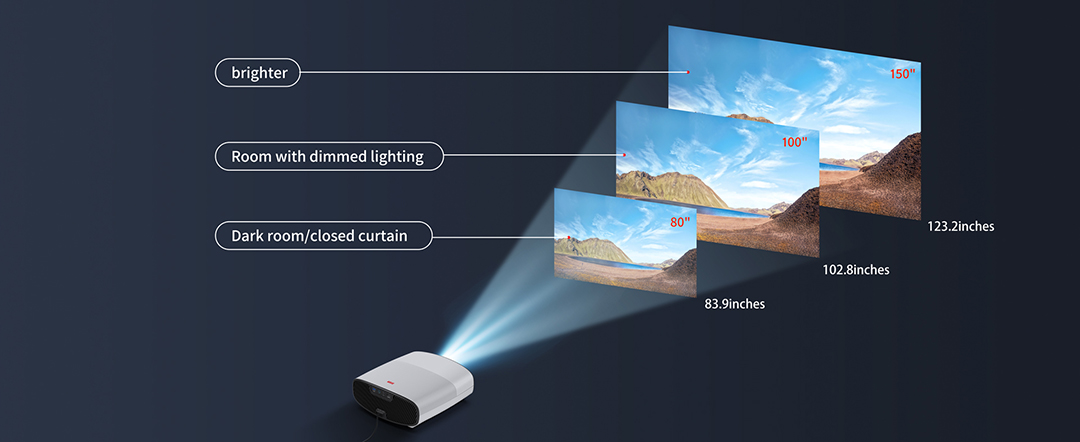

Projection size
calculation method
|
Projection ratio (1.2)*projection size (100 inches)*16:9
screen length (0.0254*0.8716)
|
|
Screen width ratio
|
16:9
|
|
Keystone correction
|
Automatic trapezoidal correction ±30°, support manual side casting function
|
Projection method
|
Support front projection, rear projection, and hanging projection
|
|
Focusing method
|
Auto focus Auto Keystone
|
|
Built-in speaker
|
10W*2(Subwoofer Surround Sound Speaker)
|
|
Remote Control
|
Standard infrared remote control
|
|
Input support
|
U disk, mobile hard disk, mouse, keyboard access, computer, set-top box
|
|

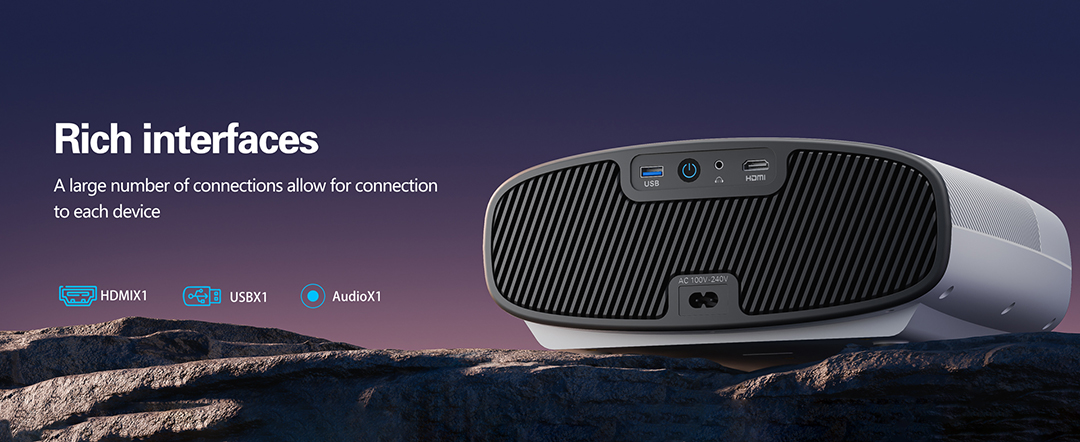

Interface parameters
|
|
Extended Memory
|
Support U disk and SSD solid state drive
|
|
Headphone Output
|
Audio output, 3.5mm connector (headphones or speakers can be connected)
|
|
USB input
|
USB HOST 2.0* 1
|
|
HD input
|
Support HD 2.0 input
|
|
Electrical Specifications
|
|
Total Power Consumption
|
130W
|
|

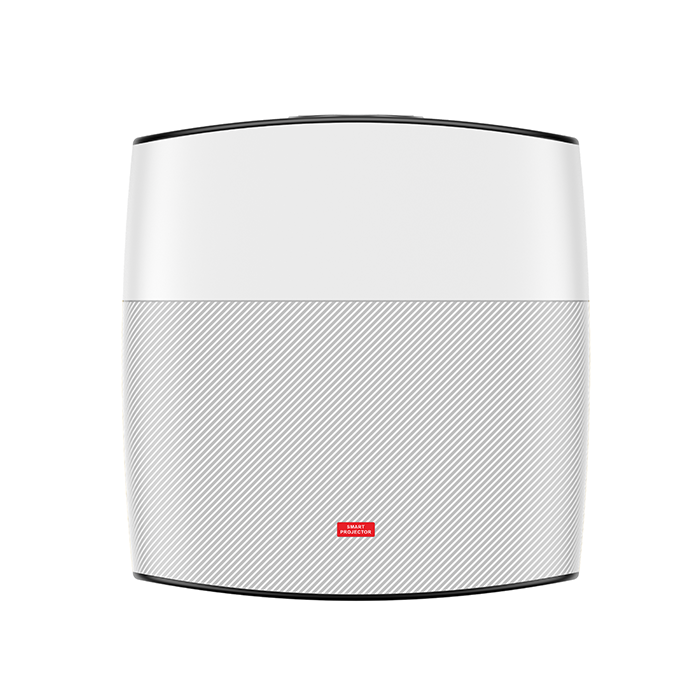

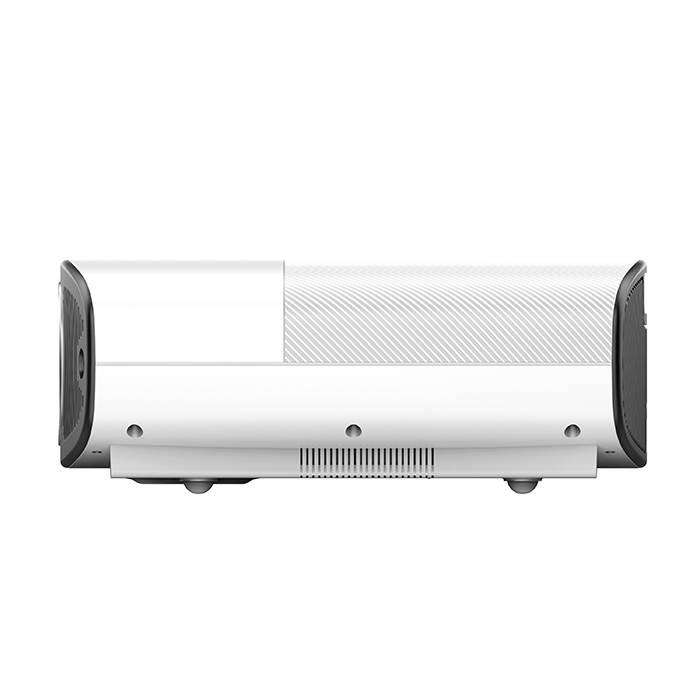

Projector size
|
28.5x29.6x11.8cm
|
|
Packing size
|
41x14x34cm
|
|
Net weight
|
3.24kg
|
|
Packing weight
|
3.91kg
|
|
Carton weight(4sets/box)
|
17.5kg
|
|
carton size
|
60x43x37cm
|
|
Packing list
|
|
Q7, Remote control, Power plug , Product instruction card
|
