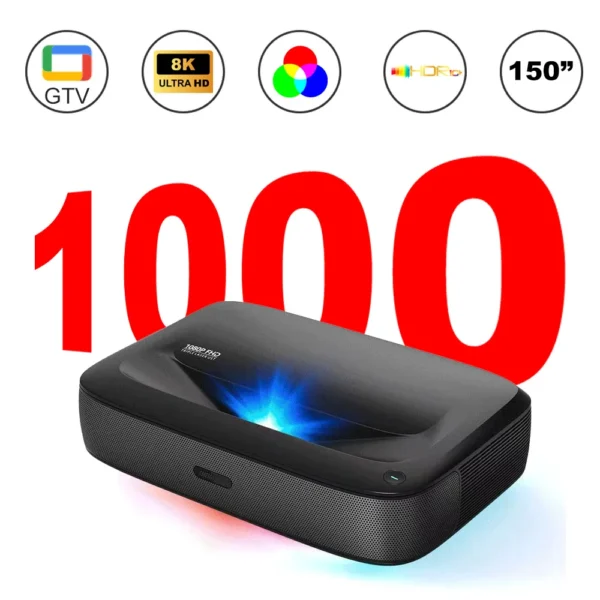

Ultra Short Throw Triple Laser DLP H2 Mini Specification
|
|
Model
|
H2 Mini
|
DLP
Optical
Light
Engine
|
Display Technology
|
DLP(0.23''DMD)
|
|
Supported Resolution
|
1080p(1920*1080)Support 4K
|
|
Brightness
|
Typ: 1200 ANSI LM
|
|
Ceiling mounted
|
Support
|
|
Light Source
|
RGB 3 colors Laser
|
|
Color Gamut
|
110% BT2020
|
|
Color Temperature
|
(0.29,0.33)8000±2000K
|
|
Light lifetime
|
50000H
|
|
Projection Ratio
|
0.19:1
|
|
Color Point (Typical)
|
(X=0.29±0.015/Y=0.32±0.015)/ 8000(-1100/+1600)K
|
|
Projection Size (Recommend)
|
60-100 inch
|
|
Aspect Ratio
|
16:9
|
|
Contrast Ratio
|
5000:1
|
|
Light Uniformity
|
≥90%
|
|
Lens Focus Mode
|
Auto Focus
|
|
Keystone Correction
|
Auto Keystone
|
|
Projection Mode
|
Front, Rear, Ceiling front, Ceiling rear
|
|
OFFSET
|
135%
|
|
PCBA
|
Operation System
|

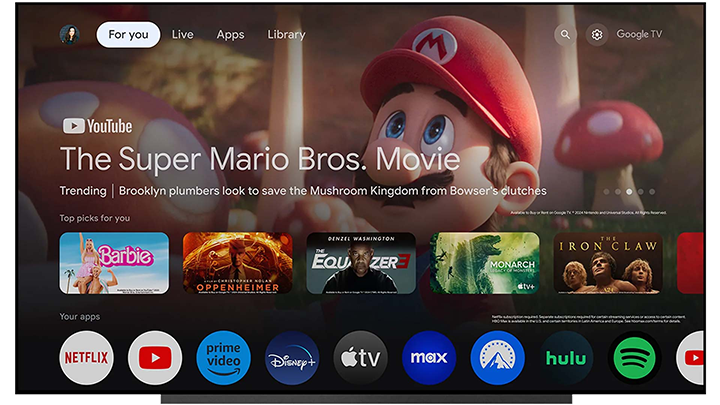

Google-TV 3.0 (Net-flix+APV+Disney+, built-in)
|
|
CPU
|
MT9630
|
|
GPU
|
Mali-G52 GPU
|
|
Memory RAM
|
2GB
|
|
Flash Storage
|
32GB
|
|
WIFI
|
Dual 2.4G/5G
|
|
BT
|
BT5.0
|
|
Operation
|
IR+BT RCU
|
|
Smart Screen Mirroring
|
Chromcast
|
|
Mirroring Sourcing System
|
HD
|
|
Internal Speaker
|
7WX2
|
|
Internal Battery Capacity
|
Optional
|
|
Whole Power Consumption
|
100W
|
|
Noise
|
≤35DB
|
|
Input Power
|
DC 20V 5A
|
|
Supported VideoFormat
|
HDR10,HLG,HEVC,PRIME HDR,AV1,MPEG-1/2/4 1080P30fps H.264/H.265 4KP60pfs
|
|
Supported Music Format
|
MPEG-1/2/3,mp3,aac,dd+(9630-B)
|
|
Supported Image Format
|
JPG/BMP/PNG/GIF
|
|

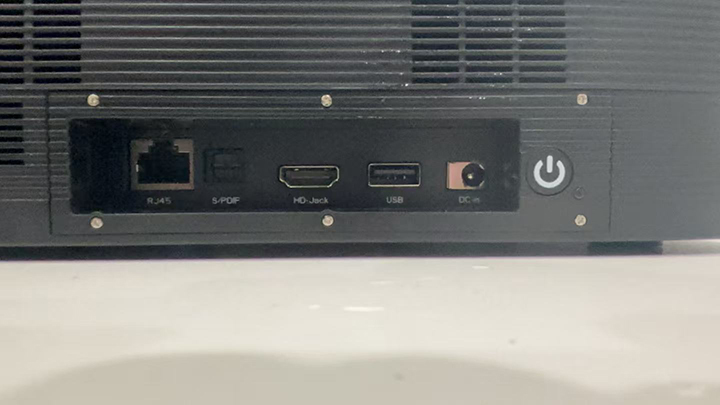

Interface
|
USB×1, HD × 1, SPDIF×1, Type-c x1, RJ45 x1
|
|
Accessory
|
Remote Control
Power Adapter
HD Cable
User Manual
|
|
Projector Size Weight
|
252*157*62mm / 1.3kg
|
|
Packing size Weight
|
31x21x15cm/4kg
|
