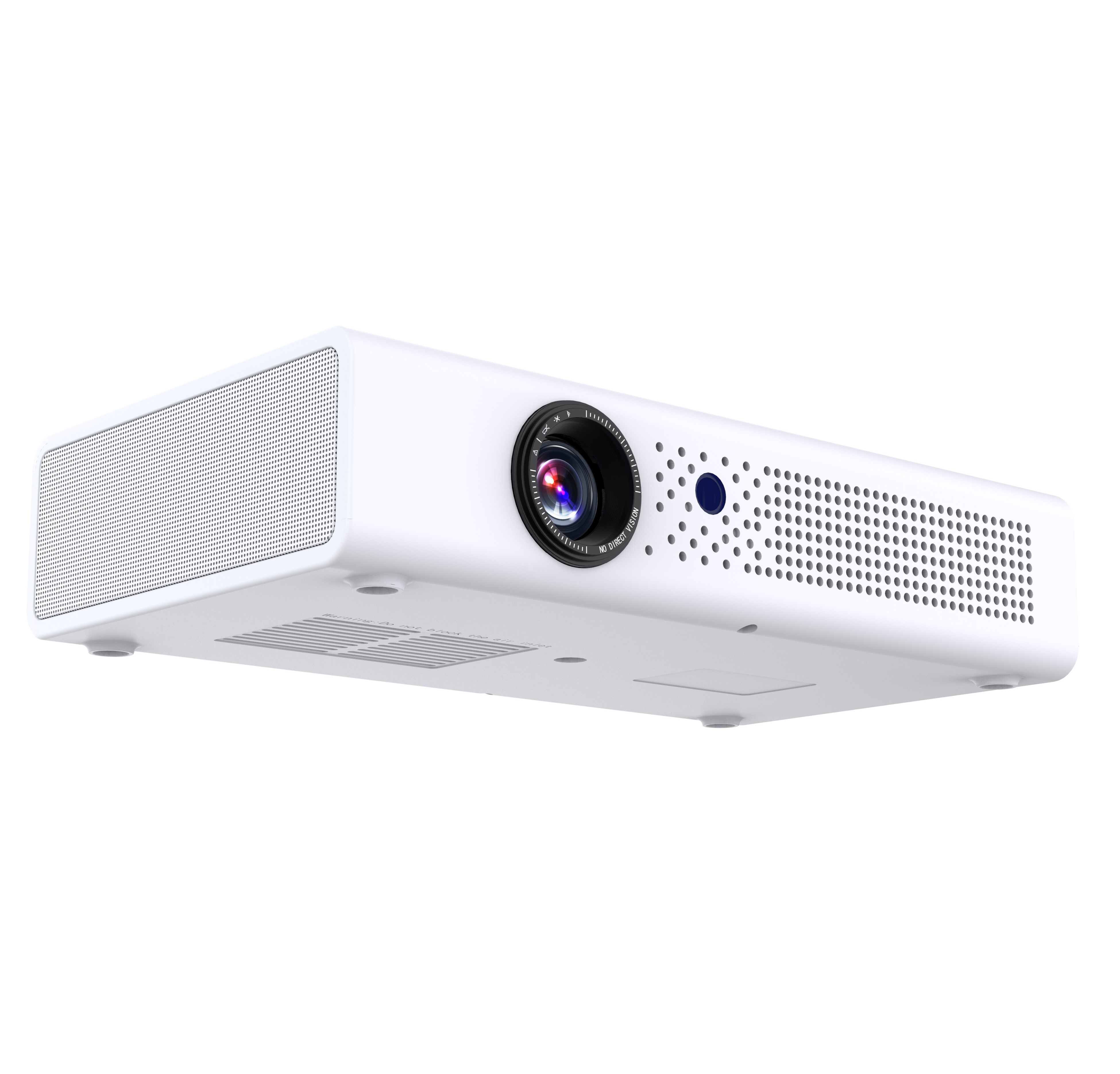

SXZ V6 Pro DLP Built in Battery 1280x800p
|
|
Projector technology
|
Texas Instruments Ti DLP technology
|
|
Display chip
|
Ti 0.45 inch DMD (with off-axis 100% optical machine)
|
|
Type of light source
|
Osram 3LED RGB+PB light
|
|
Projection brightness
|
600ANSI (International standard)
|
|
Physical resolution
|
1280*800p, Support 4K
|
|
Image quality uniformity
|
>90%
|
|
Contrast FOFO
|
5000:1
|
3D technology
|
Support 3D function DLP-LINK shutter 3D glasses
|
|
Projection parameter
|
|

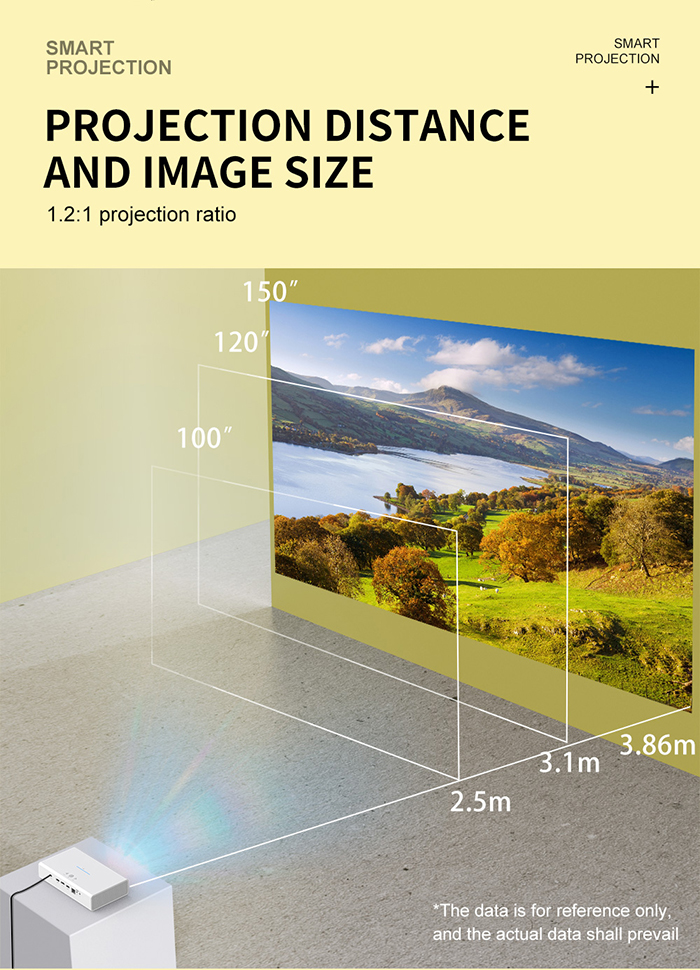

Throw ratio
|
1.2:1
|
|
Projection frame
|
37.4“@1 meter
|
Projection size
calculation method
|
Projection ratio (1.2)*projection size (100 inches)*16:9 screen length (0.0254*0.8716)
|
|
Screen width ratio
|
16:9
|
|

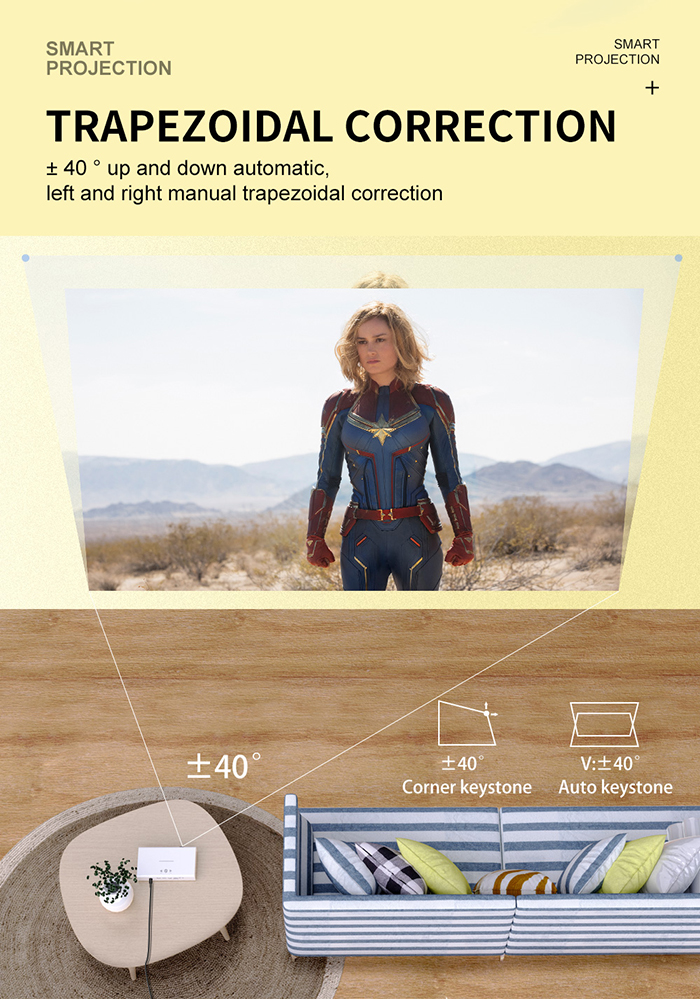

Keystone correction
|
Automatic up and down keystone correction ±40°, support manual side projection function
|
Projection method
|
Support front projection, rear projection, and hanging projection
|
|
Focusing method
|
ST L8 TOF laser Auto focus keystone
|
|

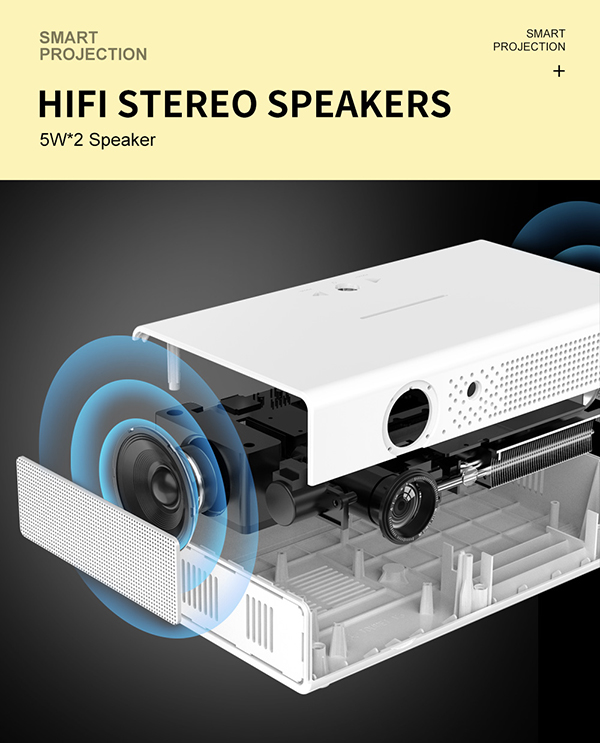

Built-in speaker
|
5W*2(Super bass surround sound)
|
|
Fuselage material
|
Metal ABS,+Body lens adopts closed optical design, to ensure that the lens. Will not be scratched for 10 years
|
|
System parameters
|
|
CPU
|
MTK Decode 4K CPU: Contex A53 4-core GPU: Mali-G52 MC1
|
Clock Speed
|
64-bit CPU: Contex A53 4-core GPU: Mali-G52
|
|
Cache
|
2GB DDR3
|
|
ROM
|
32GB eMMC
|
|
Operating System
|
Android 9.0
|
|
BT
|
BT5.0 (can be connected to an external BT mouse, BT speaker, mouse, gamepad)
|
|
WiFi
|
2.4G+5G dual-band
|
|
Remote Control
|
Standard BT remote control, support for external USB
2.4G wireless remote control, Bluetooth remote control mouse
|
|
Input support
|
U disk, mobile hard disk, mouse, keyboard access, computer, set-top box
|
|
MEMC
|
Support 1080P 60HZ
|
|
Wireless same screen
|
Support WiFi LAN on the same screen +outdoor no network hotspot on the same screen
|
|

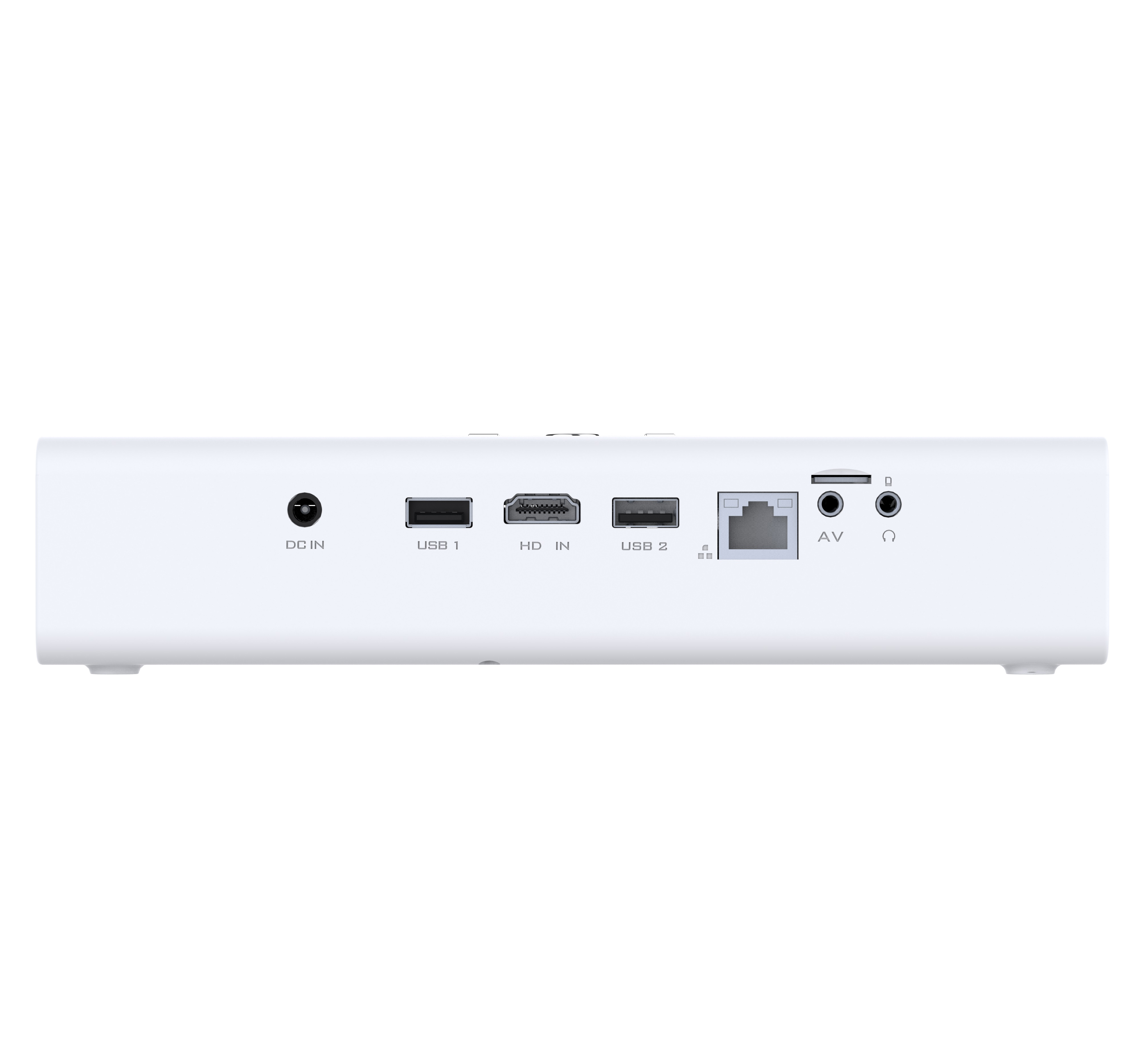

Interface parameters
|
|
Extended Memory
|
Support U disk and SSD solid state drive
|
|
USB input
|
USB HOST 2.0* 2
|
|
HD input
|
Support HD 2.0 input
|
|
TF
|
X1
|
|
Lan Port
|
x1
|
|
Headphone Output
|
Audio output, 3.5mm connector (headphones or speakers can be connected)
|
|
Electrical Specifications
|
|
Total Power Consumption
|
45W
|
|
Built-in battery
|
Built-in 15600mAh lithium battery 57.72Wh
|
|
Projector size
|
22x12x4.2cm
|
|
Package size
|
27x18x11cm
|
|
Net Weight
|
0.8kg
|
|
Package Weight
|
1.8kg
|
|
Carton Weight(10sets/box)
|
18.5kg
|
|
Carton size(10sets/box)
|
57x39x36cm
|
|
Power input
|
Power Adapter 19V/3.42A DC IN
|
|
Battery life
|
105 minutes in highlight mode, 120 minutes in standard mode, 200 minutes in power saving mode
|
Charging time
|
Fully charged in about 4 hours (can be used while charging)
|
|
Packing list
|
|
V6 Pro ,Remote control, power adapter, power cord , Product instruction card
|
